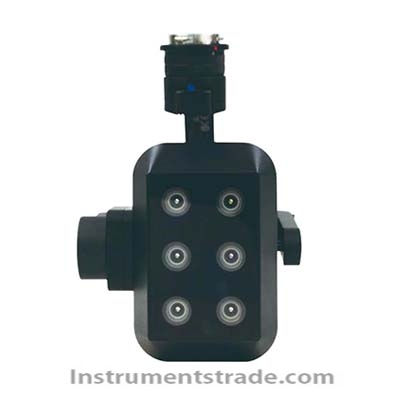

FS-600 multispectral camera Features: Innovative standard configuration with dual red-edge vegetation sensitive bands Customizable and independently selectable wavelength band within the range of 400nm to 1000nm Utilizing DJI Pilot integrated control, it is convenient to use Support 18 kinds of wavelength combinations for customization Synchronous imaging of all channels with a maximum speed of 100ms DJI X-Port power supply, 512G solid-state drive DJI M400 drone customization, plug and play Technical Specifications: Product model: FS-600 Configuration: 6-channel multispectral Target size: 1/2" Effective pixels: 1.3Mpx Shutter type: Global Quantization bit depth: 12bit Field of view: 54.2°×44.5° Ground resolution: 9.6cm@h120m Coverage width: 123m×98m@h120m Optical window: sapphire optical glass window Main unit dimensions: 182mm x 169mm x 129mm (including gimbal) Host weight: ≤940 grams (including gimbal) Installation interface: X-Port Power supply: X-Port Power consumption: ≤43W Image format: 16bit raw TIFF (including GPS) Storage medium: Standard configuration with 512G capacity solid state drive Processing software: FigSpec UAV-MS, FigSpec MS-PreMerge, FigSpec Studio Parameter settings: DJI Pilot Shooting trigger: Timed trigger Shooting frequency: Max. support 10HZ Operating ambient temperature: -10℃~+50℃ (relative wind speed ≥1m/s) Storage environment temperature: -30℃~+70℃ Environmental humidity: RH (%) ≤ 85% (non-condensing)
FS-600 multispectral camera Features: Innovative standard configuration with dual red-edge vegetation sensitive bands Customizable and independently selectable wavelength band within the range of 400nm to 1000nm Utilizing DJI Pilot integrated control, it is convenient to use Support 18 kinds of wavelength combinations for customization Synchronous imaging of all channels with a maximum speed of 100ms DJI X-Port power supply, 512G solid-state drive DJI M400 drone customization, plug and play
