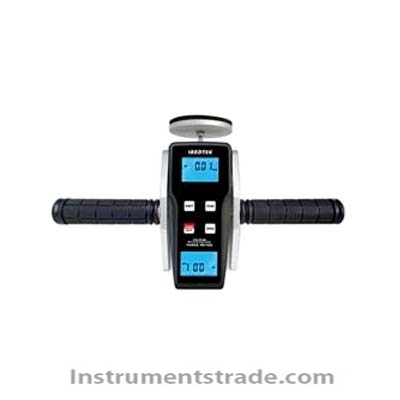

FM-204M muscle strength tester Introduction: FM-204M muscle strength tester is used for task analysis and ergonomic analysis. Simple and accurate, it is an ideal choice for workplace design, strength assessment and ergonomic research. characteristic: 1. High precision and high resolution. 2. Digital display, no parallax. 3. The four measuring units of N (Newton), kg (kilogram), lb (pound) and g (gram) are available for selection and conversion. 4. Peak holding function. Keep the peak display until it is cleared manually. 5. Alkaline battery can be used for power supply; It can also be connected to 5V DC power supply. Technical parameters: Measuring range: ± 50 kgf ±490 N ±110 Lbf Resolution: 0.01 kgf 0.1 N 0.1 Lbf Accuracy: Grade 0.5 Precision: ± 0.5% FS (range) ± 1 digital peak value Unit: Kgf, N, Lbf Measurable value: peak value, instantaneous value Display: 4-digit large LCD, positive direction dual display Backlight: Backlight Allowable load: 150% F.s (buzzer alarm when exceeding 110% F.s) Power supply: 2 No. 5 batteries or 5V DC current Operating temperature: 0 ° C~40 ° C Operating humidity:<80% Working environment: no earthquake source and corrosive medium around Net weight: 705g Support size: lever: 315mm* Φ 30mm support: 155mm * 95mm * 35mm Instrument size: host: 170mm * 72mm * 35mm
Introduction: FM-204M muscle strength tester is used for task analysis and ergonomic analysis. Simple and accurate, it is an ideal choice for workplace design, strength assessment and ergonomic research.
