FLY series mobile bridge-type three-coordinate measuring machine

Product ID：CLCDszb027

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberFLY series

Brand NameXALIDE

Payment TermsTT，PAYPAL，Alibaba.com Pay

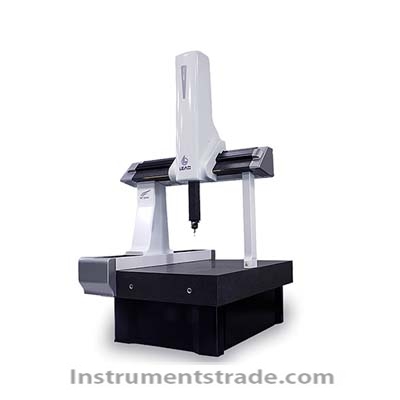

FLY series mobile bridge-type three-coordinate measuring machine
Introduction:
The FLY series gantry-style mobile automatic three-coordinate measuring machines are characterized by their powerful functionality, stable performance, high precision, simple operation, speed and efficiency, and convenient maintenance. This series adopts a classic mobile bridge structure design and an integrated workbench, offering significant advantages such as strong load-bearing capacity, spacious workpiece placement, and convenient loading and unloading. It is widely used in the measurement of frames, gears, cams, worm gears, blades, curves, and surfaces in industries such as machinery, automotive, mold, plastic, aerospace, and more.
Features:
1. Triple closed-loop control: On the basis of the dual closed-loop control of position and speed, an additional speed closed-loop is added within the controller to achieve more accurate and reliable control
2. Multiple interpolation functions: Supports linear interpolation, circular interpolation, spiral path interpolation, and spherical path interpolation, significantly improving measurement efficiency, especially in cylindrical, circular hole, spherical, and curved surface measurements where it demonstrates obvious advantages
3. Probe compatibility: Supports PICS A and PICS B probe interface specifications, compatible with multiple types of probes
4. I++ Standard Interface: The interface with measurement software is designed according to the I++ standard, supporting the interchangeable use of multiple measurement software
5. Safety protection mechanism: Provides multiple control modes, switches to safe mode immediately in case of failure, and features online fault diagnosis
6. Probe anti-collision: Real-time detection of illegal collisions, timely stopping of machine movement, and protection of the probe system safety
7. Humanized control box: Provides simple and reasonable buttons and joysticks, supports speed control and keyboard input, and is equipped with an emergency switch
Technical Specifications:

model	Measuring range (mm)			Outline dimensions (mm)			Indication error (μm)	Detection error (μm)	Maximum load capacity (kg)	Instrument weight (kg)
	X-axis	Y-axis	Z-axis	Length L	Width W	High H	E≤	R≤
FLY 654	500	600	400	1420	1135	2310	1.5+L/3002.6+L/300	2.8	500	900
FLY 866	600	800	600	1740	1420	2760	1.7+L/3002.3+L/300	2.8	800	1300
FLY 1086	800	1000	600	1940	1620	2760	1.7+L/3002.7+L/250	2.8	1000	1700
FLY 1286	800	1200	600	2140	1620	2760	1.7+L/3002.7+L/250	2.8	1000	1900
FLY 1586	800	1500	600	2440	1620	2760	1.7+L/3002.7+L/250	2.8	1000	2200

Note: The first row of data in the indication error represents standard accuracy, while the second row represents high-precision configuration. L denotes the measurement length (unit: mm).
Other key technical parameters

parameter item	Technical Requirements
gas supply pressure	0.6-0.8 MPa
Maximum movement speed	450 mm/s
resolution	0.5 μm
Grating system	British RENISHAW high-precision reflective metal strip grating scale
guide rail material	High-quality granite specially used for Grade 00
Explosion-proof rating	None (standard configuration), explosion-proof type can be customized
