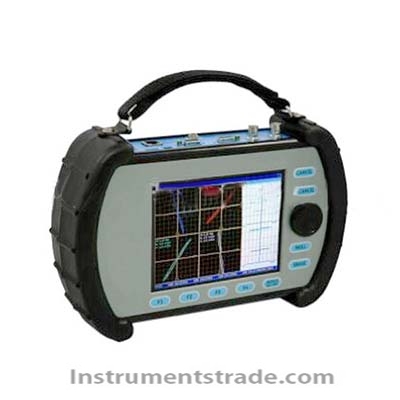

FET-5.5 eddy current flaw detector Introduction: FET-5.5 is an eddy current tester with dual sensor inputs and dual channels. Each sensor input has a separate testing channel. Can connect sensors of bypass, rotation, and probe types. Suitable for installation on automatic or semi-automatic testing lines for inspection, heat treatment verification, and characteristic exploration. For desktop and laboratory applications that can provide external power supply. characteristic: 1. Dual probe, dual frequency or single probe, dual frequency 2. Each testing channel/frequency has different warning outputs 3. Configurable probe connections (bridge, reflection, etc.) 4. Support for rotating probe drive 5. Wide filtering range, suitable for dynamic detection 6. Flexible I/O interface connected to processing controller (PLC) 7. Multi language user interface 8. Settings and signal tracking can be stored internally 9. Computer software used to transfer test settings and results to a computer Technical parameters: Display: Color monitor with CCFT backlight illumination, each channel's color can be selected Frequency range: 50 Hz to 10 MHz Low pass filter: 20 Hz to 5 kHz High pass filter: all pass, abnormal 0.01 Hz to 0.5 Hz, generally 10 Hz to 2 kHz Channels/probes: 2 per unit, can support multiple synchronized operations through alternative synchronization devices Alarm: Each channel has independent alarms, and the alarm mode can be selected as phase, amplitude, or gate frame alarm Alarm duration: from 50 milliseconds to 10 seconds Alarm delay menu: optional Balance calibration: Each probe is calibrated independently or jointly, with an independent balance calibration button on the front panel and remote balance calibration Trace recording/playback: Built in recording of 30 second trace length Analog output: Independent optional analog output
