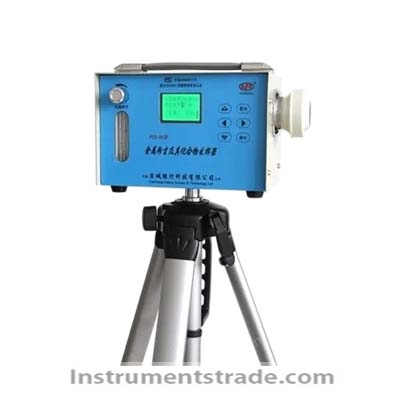

FCS-10 Metal Dust Sampler

Product Introduction
The FCS-10 Metal Dust Sampler is designed to collect workplace air samples containing metallic particles and metal compounds for occupational health assessment, industrial hygiene monitoring, and laboratory analysis.
It can be used for sampling airborne metals such as lead, manganese, antimony, beryllium, cadmium, chromium, cobalt, copper, mercury, nickel, zinc, and other metals specified for workplace monitoring. With an LCD display, menu-based operation, and electronic timing control, the FCS-10 provides convenient sampling-time management and reliable timing performance.
Its compact structure, lightweight design, and rechargeable battery operation make it suitable for industrial workplaces, occupational disease prevention institutions, universities, and research laboratories.

Performance Features
• Adjustable sampling time: Allows users to set the sampling duration according to testing requirements.
• Sampling completion alert: Provides a prompt when the preset sampling period ends.
• LCD status display: Shows battery capacity, voltage, and charging status throughout the charging process.
• Delayed sampling function: Supports delayed sampling timing during operation.
• Wide flow range: Sampling flow can be adjusted within 0–10 L/min.
• Portable design: Compact dimensions and a weight of approximately 3.5 kg support field use.
• Flexible power supply: Supports AC power and rechargeable nickel-cadmium or nickel-metal hydride batteries.

Working Principle
The FCS-10 draws workplace air through a suitable sampling medium, such as a compatible filter, to collect airborne metal-containing particles. The collected sample can then be prepared and analyzed using an appropriate laboratory method to determine the presence or concentration of target metals.
Users can set the sampling duration and flow rate according to the applicable sampling method. The instrument's timing function and flow control help maintain consistent sampling conditions.
The appropriate sampling medium, flow rate, and analytical method should be selected according to the target metal, workplace conditions, and applicable occupational hygiene standards.

Technical Specifications

Parameter	Specification
Model	FCS-10
Instrument Type	Metal Dust Sampler
Sampling Flow Range	0–10 L/min
Pumping Negative Pressure	>15,000 Pa
Flow Accuracy	±2.5%
Flow Stability	≤5%
Timing Accuracy	±0.01%
Operating Voltage	DC 10 V
Battery Configuration	8 rechargeable Ni-Cd or NiMH batteries
AC Power Supply	220 V ±10 V, 50 Hz
Charging Current	500 mA
Continuous Operating Time	Over 5 hours; over 8 hours with NiMH batteries
Operating Temperature	−5°C to +40°C
Relative Humidity	<95% RH
Operating Noise	<75 dB
Dimensions	205 × 135 × 115 mm
Weight	3.5 kg
Display and Controls	LCD display, menu operation, electronic timing

Application Scenarios
The FCS-10 metal dust sampler is suitable for:
•   Occupational hygiene surveys in industrial workplaces
•   Air sampling in metal processing and manufacturing facilities
•   Workplace monitoring for airborne metal particles
•   Occupational disease prevention and health assessment
•   Environmental and industrial hygiene testing
•   University teaching and laboratory experiments
•   Scientific research involving airborne metals and their compounds
Typical target substances include lead, manganese, antimony, beryllium, cadmium, calcium, chromium, cobalt, copper, lithium, magnesium, mercury, molybdenum, nickel, potassium, sodium, strontium, tantalum, thallium, tin, tungsten, vanadium, zinc, zirconium, and their compounds.

FCS-10 vs. General-Purpose Air Samplers

Comparison Item	FCS-10 Metal Dust Sampler	General-Purpose Air Sampler
Primary Application	Workplace sampling for metal-containing airborne particles	Depends on model and sampling configuration
Flow Range	0–10 L/min	Varies by model
Sampling-Time Control	Adjustable timing with completion alert	Depends on model
Display	LCD with battery and voltage information	Varies by model
Power Options	AC power and rechargeable batteries	Varies by model
Portability	3.5 kg, compact design	Varies by model
Sample Analysis	Requires subsequent laboratory analysis	Depends on the target contaminant and method

Frequently Asked Questions
Q1: What is the FCS-10 metal dust sampler used for?
It collects workplace air samples containing metal particles and metal compounds for subsequent laboratory analysis and occupational hygiene assessment.
Q2: Which metals can be sampled?
The listed targets include lead, manganese, antimony, beryllium, cadmium, chromium, cobalt, copper, mercury, nickel, zinc, and other metals and their compounds.
Q3: What is the sampling flow range?
The specified sampling flow range is 0–10 L/min.
Q4: Can the sampling time be preset?
Yes. Users can set the sampling time, and the instrument provides a prompt when sampling is complete.
Q5: How is the FCS-10 powered?
It operates on DC 10 V using eight rechargeable Ni-Cd or NiMH batteries and can also use a 220 V AC, 50 Hz power supply.
Q6: How long can it operate continuously?
The specified runtime is over 5 hours, extending to over 8 hours when using NiMH batteries.
Q7: Does the FCS-10 directly measure metal concentrations?
No. It collects air samples. Metal concentrations are determined through appropriate laboratory preparation and analysis.
Q8: What should be considered when selecting a sampling method?
Users should confirm the target metal, sampling medium, required flow rate, sampling duration, and applicable occupational hygiene method before testing.
