EV series electromagnetic vibration testing machine

Product ID：WSHzd030

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberEV series

Brand NameLAIBOTONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

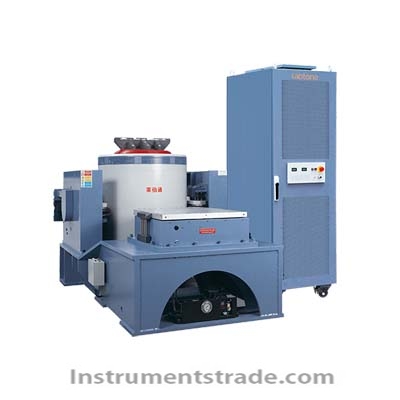

EV series electromagnetic vibration testing machine
Introduction:
The electromagnetic vibration testing machine simulates vibration environments under laboratory conditions, testing impact strength and reliability in various vibration testing application fields. With the help of the vibration testing machine system in the laboratory, it is possible to simulate and reproduce modes such as sine, random, resonance search and dwell, typical impact, and road simulation. It is essential for product quality assurance and new product development
The EV series electromagnetic vibration testing machine is specially designed to meet the requirements of long-duration operation. With the addition of a vibration-resistant base, it can achieve vibration in both vertical and horizontal directions. The standard platform is equipped with an efficient airbag vibration isolation device, which minimizes the transmission of vibration to the building. Additionally, in most cases, no additional foundation is required.
The vibration table, power amplifier, and vibration measurement and control system constitute a complete vibration testing system, providing technical support for users in establishing product quality inspection in accordance with relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.). The excitation force range spans from 3-400KN, the frequency range from 1-4000Hz, and the amplitude (displacement) range from 38-100mmp-p. Special conditions can be customized.
Features:
1. Robust suspension system and linear motion guidance, with strong load-bearing capacity, excellent guiding performance, and high stability
2. The central load airbag has high static stiffness, low dynamic stiffness, strong load-bearing capacity, and excellent performance when the amplitude changes
3. High-efficiency D Class power conversion, 3-Sigma peak current, providing optimized power consumption and minimal harmonic distortion
4. Quick self-checking diagnosis and interlock protection, ensuring high safety and reliability
5. The airbag isolation and shock absorption device eliminates the need for a dedicated foundation for the vibration table, perfectly reproducing vibration waveforms and reducing vibration transmission
6. Provide different applications of horizontal and vertical expansion platforms
7. The selection and combination of controllers provide the simplest operation
Technical Specifications:

System Model	EV1005	EV101	EV202	EV203	EV204
Table model	A005S12	A01S12	A02S12	A03S15	A04S15
Rated thrust (KN/kgf)	0.55/55	1/100	2/200	3/300	4 /400
Impact thrust (KN/kgf)	1/100	2/200	4/400	6/600	8 /800
Frequency range (Hz)	5-6000（10K)	5-6000	5-4500	5-4500	5-4000
Maximum sinusoidal/random acceleration (g)	30/30	65/60	80/60	90/60	85/60
Maximum displacement p～p/(mm)	20	25	40
Maximum load (kg)	20	100	100	120	120
Moving coil diameter (mm)	120		150
First-order resonant frequency (Hz) (±5%)	5,000	4,700	3,500	2,900	2,800
Equivalent mass of moving parts (kg)	1.7	1.5	2.5	3	4
fan power	200W	0.75kw			1.1kw
Fan flow rate/wind pressure		2.3m3/min ;20kpa		11m3/min ;2.11kpa
System power	1kVA	3kVA	4.6kVA	6kVA	7kVA
