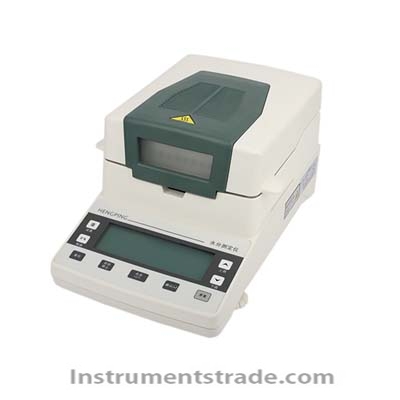

ESH push-button electronic moisture meter

Product ID：FSHhwls051

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberESH

Brand NameSHUNYUHENGPING

Payment TermsTT，PAYPAL，Alibaba.com Pay

ESH push-button electronic moisture meter
Features:
1. Printing of Chinese/English test reports;
2. Moisture content/percentage of dry weight (solid content)/dry weight display;
3. The test temperature is adjustable from 40 to 199℃, and the heating time is adjustable from 3 to 99 minutes;
4. Heating mode, heating temperature, and testing time are configurable;
5. 450W quartz halogen lamp, capable of continuous operation for 5000 hours;
6. PT high-precision temperature sensor, temperature control and protection system;
7. 15 sets of parameter settings stored at addresses, and 5 sets of test report history stored;
8. High-precision level meter + adjustable feet;
9. Precision-cast aluminum body + high-temperature resistant polymer material (long-term temperature resistance up to 250℃);
10. A two-layer 304 stainless steel fully mirrored heating and insulation chamber;
11. A heated state visible frosted glass window allows for constant observation of the heating test status;
12. 22mm heating space, with optional volume-controlled heating components;
13. One-time molding anti-scald test sample removal and carrying basket design;
14. Equipped with 50 aluminum sample trays and F2-grade calibration weights as standard;
15. Ultra-quiet micro-fan with noise level below 20 decibels, paired with a multi-channel cooling system;
16. RS232 data interface, capable of connecting to a printer for printing test reports.
Technical Specifications:

	ESH40	ESH35	ESH32	ESH31
Weighing range (g)	110
Readability (mg)	10	5	2	1
display mode	High-definition LCD (white background with black characters, backlight adjustable)
sensor	strain gauge
Sample tray size (mm)	Φ90
Net weight (Kg)	5.8
Gross Weight (Kg)	7.5
Outline dimensions (mm)	200x180x380 (length * width * height)
Packaging overall dimensions (mm)	490x360x350 (length * width * height)
Operating relative temperature	5℃~40℃
Heating method	halogen lamp
temperature sensor	PT-100
temperature range	40℃~199℃
Temperature interval	1℃
Moisture range	0.00%--100.00%
Moisture readability accuracy	0.20%	0.10%	0.04%	0.01%
Drying range	100.00%-0.00%
Dry readable accuracy	0.20%	0.10%	0.04%	0.01%
Time Setting	3~99 minutes
Store historical data	15 groups

ESH push-button electronic moisture meter
Features:
1. Printing of Chinese/English test reports;
2. Moisture content/percentage of dry weight (solid content)/dry weight display;
3. The test temperature is adjustable from 40 to 199℃, and the heating time is adjustable from 3 to 99 minutes;
4. Heating mode, heating temperature, and testing time are configurable;
5. 450W quartz halogen lamp, capable of continuous operation for 5000 hours;
6. PT high-precision temperature sensor, temperature control and protection system;
7. 15 sets of parameter settings stored at addresses, and 5 sets of test report history stored;
8. High-precision level meter + adjustable feet;
9. Precision-cast aluminum body + high-temperature resistant polymer material (long-term temperature resistance up to 250℃);
10. A two-layer 304 stainless steel fully mirrored heating and insulation chamber;
11. A heated state visible frosted glass window allows for constant observation of the heating test status;
12. 22mm heating space, with optional volume-controlled heating components;
13. One-time molding anti-scald test sample removal and carrying basket design;
14. Equipped with 50 aluminum sample trays and F2-grade calibration weights as standard;
15. Ultra-quiet micro-fan with noise level below 20 decibels, paired with a multi-channel cooling system;
16. RS232 data interface, capable of connecting to a printer for printing test reports.
