EMF-70V Vacuum Fourier Transform Infrared Spectrometer
Product Introduction

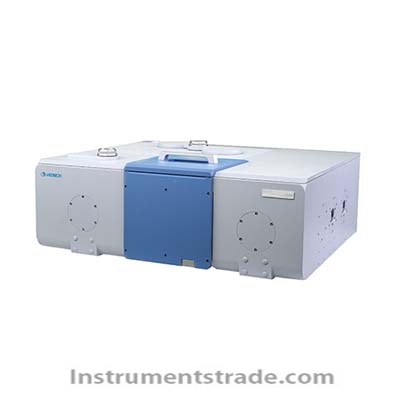

The EMF-70V Vacuum Fourier Transform Infrared Spectrometer is a high-resolution vacuum FTIR spectrometer designed for demanding infrared spectroscopy applications. Its optical and sample compartments are sealed within a vacuum system, achieving a vacuum level better than 0.2 mbar and an overall vacuum level better than 3 mbar during testing.
The vacuum optical path helps reduce interference from atmospheric moisture and carbon dioxide, improving spectral stability and measurement reliability. With a resolution better than 0.16 cm⁻¹, up to six built-in detectors, and extensive sampling accessories, the EMF-70V is suitable for advanced chemical analysis, materials research, and specialized infrared spectroscopy.

Performance Features
•  Vacuum-sealed optical and sample compartments for improved spectral stability.
•  High resolution: Better than 0.16 cm⁻¹.
•  Excellent wavenumber accuracy: ≤0.005 cm⁻¹ at 1554 cm⁻¹.
•  High signal-to-noise ratio: Better than 60,000:1 under specified conditions.
•  Up to six built-in detectors, including DLaTGS, InGaAs, Si, GaP, and MCT options.
•  Wear-free, high-stability interferometer with a collimated optical design.
• Pre-collimated, high-energy mid/far-infrared source with hot-swappable replacement.
•  Automatic accessory recognition for convenient sampling configuration.
•  Ethernet networking for remote control, data acquisition, processing, and real-time data sharing.
•  Integrated IVU verification system with self-check routines and GLP-compliant reports.
•  Comprehensive FTIR software for spectral processing, quantitative analysis, peak fitting, atmospheric compensation, and macro programming.

Working Principle
The EMF-70V operates using Fourier transform infrared spectroscopy. A high-energy infrared source emits radiation through the interferometer, which modulates the infrared beam to produce an interferogram. The beam then passes through the sample, where specific molecular vibrations absorb infrared energy.
The detector records the resulting interferogram, and the software applies a Fourier transform to convert it into an infrared spectrum. The spectrum provides information about molecular structure, chemical composition, and material properties.
The vacuum-sealed optical path minimizes atmospheric absorption from water vapor and CO₂, while the high-resolution optical system and interchangeable detectors support precise spectral measurements across a broad infrared range.

Technical Parameters

Parameter	Specification
Model	EMF-70V
Spectral Range	8,000–350 cm⁻¹; optional 28,000–10 cm⁻¹
Resolution	Better than 0.16 cm⁻¹

EMF-70V vs. Conventional FTIR Spectrometers

Feature	EMF-70V Vacuum FTIR	Conventional Non-Vacuum FTIR
Optical Path	Vacuum-sealed	Usually air-filled
Atmospheric Interference	Reduced water vapor and CO₂ absorption	More susceptible to atmospheric interference
Resolution	Better than 0.16 cm⁻¹	Depends on model; often lower
Wavenumber Accuracy	≤0.005 cm⁻¹ at 1554 cm⁻¹	Depends on model
Detectors	Up to 6 built-in detectors	Usually fewer built-in detector options
Accessory Compatibility	Wide range of vacuum and commercial accessories	Depends on instrument configuration
Networking	Ethernet remote control and real-time data sharing	Depends on model
Verification	Integrated IVU self-check with GLP reports	Depends on model
Best Suited For	High-resolution research and demanding infrared analysis	Routine FTIR testing and general laboratory analysis

Frequently Asked Questions (FAQ)
1. What is the EMF-70V vacuum FTIR spectrometer used for?
It is used for high-resolution infrared spectroscopy, molecular identification, chemical analysis, materials research, and specialized vacuum-based FTIR applications.
2. What is the spectral range of the EMF-70V?
The standard range is 8,000–350 cm⁻¹, with an optional extended range of 28,000–10 cm⁻¹.
3. What is the resolution of this vacuum Fourier transform infrared spectrometer?
The EMF-70V provides a resolution better than 0.16 cm⁻¹.
4. Why is a vacuum optical path important in FTIR?
Vacuum sealing reduces atmospheric water vapor and CO₂ absorption, helping improve spectral stability and reduce interference during measurements.
5. How many detectors can the EMF-70V accommodate?
It can include up to six built-in detectors, including DLaTGS, InGaAs, Si, GaP, and MCT options.
6. Can the EMF-70V connect to an infrared microscope or Raman system?
Yes. The instrument supports integration with infrared microscopes, Raman systems, thermal analysis accessories, and a wide range of sampling accessories.
7. Does the EMF-70V support remote operation?
Yes. Ethernet networking enables remote control, data acquisition, data processing, and real-time data sharing.
8. What software is included with the EMF-70V?
The software package includes FTIR control, spectral processing, data conversion, multicomponent quantification, peak fitting, H₂O/CO₂ compensation, self-check, macro programming, and online help.
9. Can the EMF-70V be used for GLP-compliant laboratory verification?
Yes. Its built-in IVU verification system uses standard reference materials and provides self-check reports suitable for GLP-oriented laboratory workflows.
