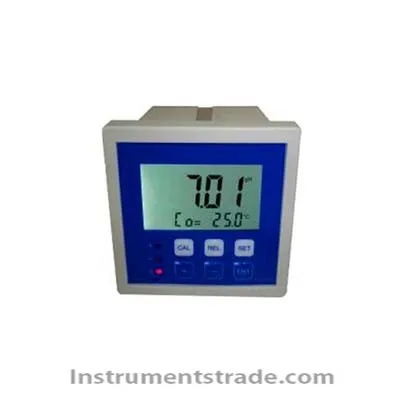

EF-5800 online PH automatic monitor Introduction
EF-5800 PH/ORP dual function integrated, with adjustable upper limit contact alarm function. It has 0~100°C automatic temperature compensation function, 帯4~20m isolation signal output. High precision and reliable control. It is a Good performance acidity and alkalinity redox test control instrument Technical Parameters
Measuring range: pH (0–14 pH); ORP ( -1999 - +1999 mV)
Accuracy: + 0.02 pH + 1 mV
Resolution: 0.01pH; 1mV
Stability: ≤ 0.02 pH / 24 hours ≤ 3 mV / 24 hours
pH standard solution: 4.01/6.86/9.18
Display mode: 128 * 64 dot matrix LCD
Temperature compensation: 0–100 °C manual/automatic (NTC10K)
Signal output: 4-20mA isolation protection output Maximum loop resistance 300Ω
Alarm output: one set of high and low limit alarm contacts (3A/250V AC) normally open contact relay
Power supply: AC 220V ± 10% 50Hz
Power consumption: ≤3W
Environmental conditions: (1) Temperature 0 ~ 100 °C (2) Humidity ≤ 85% RH
Dimensions: 96 × 96 × 110mm (height × width × depth).
A pH meter is an instrument used to determine the pH value of a solution. pH meter is a common analytical instrument widely used in agriculture, environmental protection and industry. Soil pH is one of the important basic properties of soil. Factors such as the temperature of the solution to be tested and the ionic strength should be considered during the pH measurement.
