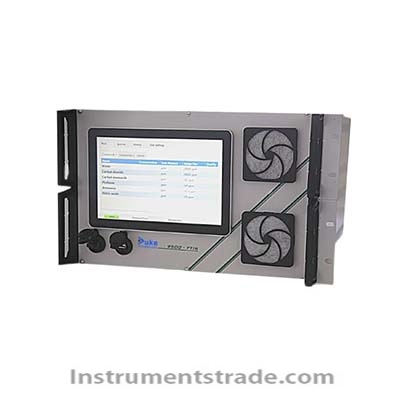

EDK 9500 online Fourier transform infrared gas analyzer Introduction: The EDK 9500 series is the latest generation of Fourier transform gas analysis technology from Duktech, including both fixed and portable enclosures. The EDK 9500 series products represent one of the most economically flexible and analytical products on the market today. The core of EDK 9500 is a high-resolution, accurate, and durable Fourier transform infrared spectrometer, which can provide high signal output, low signal-to-noise ratio, and long service life devices. characteristic: 1. Customizable from 10ppb to 100% 2. Touch screen interface, detailed health and alarm status 3. Accurate analysis of gases in water vapor with an absolute humidity of up to 20% 4. Can simultaneously detect over a hundred types of gases 5. No need to store a large number of spectral databases in the analysis computer 6. Multi range measurement, automatic range switching 7. Independent testing logs for convenient data storage 8. Sequential programming includes: multi-point sampling, automatic calibration, and flushing, etc 9. Alarm response of heating sampling system 10. Range for multi-component analysis of mixed gases 11. Sturdy, reliable, lightweight, innovative shock resistant design Technical parameters: Resolution cm-1:4, 2,0.5 Beam splitter/window material: ZnSe Spectral range cm-1:5000~830 Detector: Mercury cadmium telluride MCT (4-TE thermoelectric cooling) Exploratory D * [cm Hz 1/2 W-1]:>2.5x109 Light source: Broadband SiC, 1550K Reference laser: Stable solid-state laser Scanning frequency s-1:1 Signal to noise ratio:>5000:1 Operation: Position independent, can be detached from the upper computer workstation Cross interference: determined by the composition of the mixed gas and the actual operating conditions Detection limit: ppb to ppm, capable of detecting over 300 gases, depending on operating conditions Range: ppb to 100%, customizable Accuracy: ± 2% FS Background noise (TM): Active suppression of H2O and CO2 Sample Cell Optical path length: 5 meters Internal volume: 0.2L Maximum sample volume: 1L/min continuous, 60mL/time intermittent Transmittance:>50% Temperature range: -20 ℃ to+200 ℃ (no condensation) Coating: Inert Aluminum Coating Parabolic mirror: rhodium protection, gold-plated Light window: BBAR ZnSe system Protocol: Bidirectional Profinet, Profibus Display screen: 10 inch touch screen Computer: Windows 10 operating system Power requirement: 50 W, 50/60 Hz Size: Depending on the version Storage temperature: Port: -10 ℃~+60 ℃ (no condensation) USB， Ethernet
Introduction: The EDK 9500 series is the latest generation of Fourier transform gas analysis technology from Duktech, including both fixed and portable enclosures. The EDK 9500 series products represent one of the most economically flexible and analytical products on the market today. The core of EDK 9500 is a high-resolution, accurate, and durable Fourier transform infrared spectrometer, which can provide high signal output, low signal-to-noise ratio, and long service life devices.
