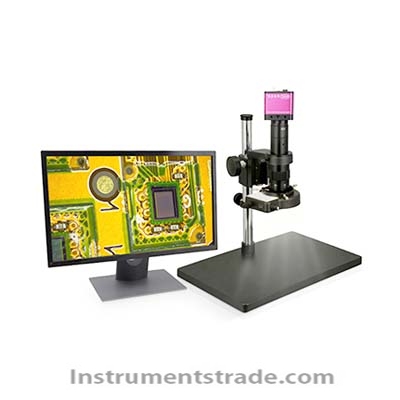

E-10A Appearance Inspection Video Microscope Introduction: The E-10A series video microscope utilizes an infinity optical system, equipped with high depth of field, high working distance lens, and high-definition industrial camera. It adopts an embedded system to directly connect to the display for imaging, effectively reducing visual fatigue of personnel and enhancing the detection speed and accuracy of operators. It is suitable for full inspection of production lines, process analysis, and more. Features: 1. Digital imaging system High-definition 2 million pixels, 1080P resolution, HDMI output, 60 frames per second (fps) high-speed image capture, with absolutely no smearing Time-lapse phenomenon; newly added function to suppress strong reflection, meeting the observation needs of highly reflective products and reducing reflection; The edge contour enhancement mode enhances the clarity of the body image, making the image appear clearer and more three-dimensional. 2. Optical system Infinite optical system, zoom ratio 1:6.5, objective lens zoom range 0.7x~4.5x, standard working distance 90mm; Adopting a modular design, it can be equipped with a CCD adapter or an additional objective lens, satisfying the choice of magnification ranging from 7x to 200x. 3. Column-type support The standard configuration includes a column-type bracket with a base size of 380*250mm, a column height of 360mm, and a lifting range of up to 300mm, With a focusing range of 60mm, it can meet the observation needs of ultra-large workpieces. A 6-inch or 10-inch two-dimensional mobile platform can be selected according to specific requirements. 4. Light source 4.5W high-brightness LED ring light source, with adjustable brightness, boasts an ultra-long lifespan of 20,000 hours and produces minimal heat, The lighting is soft and natural without flicker; a transmissive or oblique light source can be selected. 5. Monitor Equipped with a 13.3-inch high-definition display, utilizing HDMI high-definition output, with a real-time resolution of 1080P, The high-strength metal casing and IPS technology screen present more vivid and realistic colors, accurately reflecting the true characteristics of the product. An optional 21.5-inch monitor is available. Technical Specifications: Model: E-10A Industrial pixel: 2 million Resolution: 1920*1080P Variable magnification ratio: 1:6.5 Image sensor: 1/2" Frame rate: 60fps Image output: HDMI HD output Optical system: Infinity optical system, featuring coaxial confocal and magnification limiting functions Working distance: 90mm Lifting range: 300mm Focusing range: 60mm Base size: 380*260*20mm Light source/Illumination: Epi-illumination LED adjustable ring light source 0.5x adapter: 3-21.5mm field of view 0.3 Additional objective lens: 18-120mm 0.5x additional objective lens: 6-46mm Monitor: 13.3 inches/21.5 inches Magnification: 15x-95x / 24x-154x
E-10A Appearance Inspection Video Microscope Introduction: The E-10A series video microscope utilizes an infinity optical system, equipped with high depth of field, high working distance lens, and high-definition industrial camera. It adopts an embedded system to directly connect to the display for imaging, effectively reducing visual fatigue of personnel and enhancing the detection speed and accuracy of operators. It is suitable for full inspection of production lines, process analysis, and more.
