DZS-708L Multi Parameter Analyzer

Product ID：FDph054

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDZS-708L

Brand NameSHYIDIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

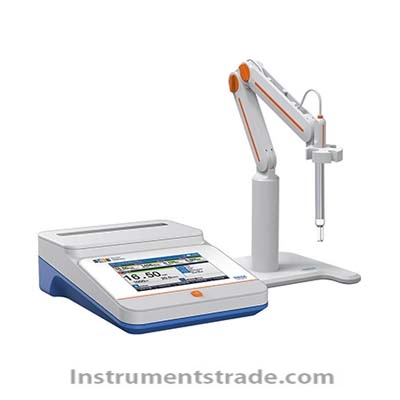

DZS-708L Multi Parameter Analyzer
Features:
1.7-inch color LCD touch screen with clear display
2. Supports both Chinese and English
3. Temperature units available: ℃ and ° F
4. Support functions such as self diagnosis upon startup, automatic shutdown, power-off protection, and factory reset
5. Support firmware upgrade function
6. Supports IP54 protection level
7. Four measurement channels, supporting up to four channel measurements
8. Supports 6 measurement modules: pH measurement module, pX measurement module, EC-T conductivity measurement module (two loop conductivity measurement module), EC-F conductivity measurement module (four loop conductivity measurement module), DO-F dissolved oxygen measurement module (fluorescence method dissolved oxygen measurement module), DO-P dissolved oxygen measurement module (polarographic method dissolved oxygen measurement module)
9. Free combination, automatic recognition, plug and play
10. Supports multiple measurement items: pH, ORP, mV, pX, ion concentration, conductivity, resistivity, etc TDS、 Salinity, ash content, dissolved oxygen concentration, dissolved oxygen saturation, and temperature
11. Intelligent operating system with functions such as user management, method management, sample management, electrode management, data management, GMP management, etc
12. Support user three-level permission management and password management
13. Support method management function, built-in 16 methods, support custom measurement methods
14. Intelligent endpoint discrimination, supporting continuous reading, balanced reading, and timed reading
15. Support calibration reminder and forced calibration function
16. Support verification reminders and mandatory verification functions
17. Support alarm reminder function
18. Support connecting automatic samplers to achieve automatic measurement and batch testing of samples
Technical Specifications:

model		DZS-708L
module		pX measurement module (1 standard), EC-T conductivity measurement module (1 standard), DO-F dissolved oxygen measurement module (1 standard)
module		pX measurement module (1 standard)
pH/pX level		Level 0.001
measurement parameters		mV, pH, pX, ORP, ion concentration, temperature
mV	scope	（-2000.00~2000.00）mV
	minimum resolution	0.01mV
	Indication error of electronic unit	±0.03% or ±0.1mV
	Electronic unit repeatability	0.1mV
	Input current of electronic unit	≤1×10-12Ａ
	Input impedance of electronic unit	≥3×1012Ω
pH	scope	（-2.000~20.000）pH
	minimum resolution	0.001pH
	Indication error of electronic unit	±0.002pH
pX	scope	（-2.000~20.000）pX
	minimum resolution	0.001pX
	Indication error of electronic unit	±0.002pX
ion concentration	scope	(1.000e-9~9.999e+9), optional units: mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb
	minimum resolution	4 significant digits
	Indication error of electronic unit	±0.3%
temperature	scope	（-10.0～135.0）℃/（14.0~275.0）℉
	minimum resolution	0.1℃/0.1℉
	Indication error of electronic unit	±0.1℃
	instrument indication error	±0.3℃ (0.0℃~60.0℃), ±1.0℃ (other ranges)
module		EC-T measurement module (two-loop conductivity measurement module) (standard configuration: 1)
Conductivity level		Level 0.5
measurement parameters		Conductivity, resistivity, TDS, salinity, ash content, temperature
conductivity	scope	0.000μS/cm~3000mS/cm
	minimum resolution	0.001μS/cm, automatically switches based on the measurement range
	Electronic unit reference error	±0.5% （FS）
resistivity	scope	5.00Ω·cm~100.0MΩ·cm
	minimum resolution	0.01Ω·cm, automatically switch according to the measuring range
	Electronic unit reference error	±0.5% （FS）
TDS	scope	0.000 mg/L~1000g/L
	minimum resolution	0.001mg/L, automatically switch according to the measuring range
	Electronic unit reference error	±0.5% （FS）
salinity	scope	（0.00~8.00）%
	minimum resolution	0.01%
	Electronic unit reference error	±0.1%
temperature	scope	（-10.0～135.0）℃/（14.0~275.0）℉
	minimum resolution	0.1℃/0.1℉
	Indication error of electronic unit	±0.1℃
	instrument indication error	±0.3℃ (0.0℃~60.0℃), ±1.0℃ (other ranges)
module		DO-F measurement module (fluorescence dissolved oxygen measurement module) (1 standard)
measurement parameters		Conductivity, resistivity, TDS, salinity, temperature
dissolved oxygen	scope	（0.00~20.00）mg/L
	minimum resolution	0.01mg/L
	instrument repeatability	0.15mg/L
	zero-value error	≤0.1mg/L
	Instrument indication error	±0.30 mg/L
	response time	≤60s (90% response at 20℃)
	Salinity compensation error	±2%
saturation	scope	（0.0~200.0）%
	minimum resolution	0.10%
	instrument indication error	±10.0%
temperature	scope	（0.0～50.0）℃/（32.0～122.0） ℉
	minimum resolution	0.1℃/0.1 ℉
	Indication error of electronic unit	±0.1
