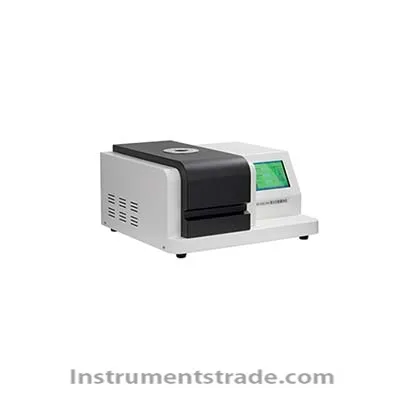

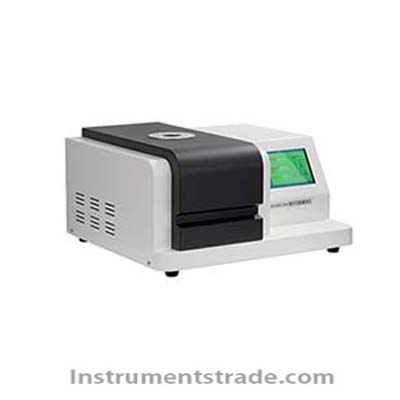

DZ-DSC300 Differential Scanning Calorimeter (DSC)

Product ID:WLcs037

Price: US$3,580.00 ~ US$7,580.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
  • Product Introduction
  • Other information
  • Model NumberDZ-DSC300
    Brand NameNJDAZHAN
    Payment TermsTT,PAYPAL,Alibaba.com Pay
    DZ-DSC300 Differential Scanning Calorimeter (DSC)
    Product Overview
    The DZ-DSC300 Differential Scanning Calorimeter (DSC) is a high-precision thermal analysis instrument designed to measure the relationship between heat flow and temperature during material phase transitions. It is widely used in materials research, polymer analysis, quality control, and advanced thermal property testing.
    The DSC technique is essential for evaluating key thermal behaviors such as glass transition temperature (Tg), melting, crystallization, cold crystallization, curing/curing kinetics, phase transitions, thermal stability, and oxidation induction time (OIT). The DZ-DSC300 provides stable baseline performance, high resolution, and excellent sensitivity, making it suitable for both R&D laboratories and industrial QC environments.


    Key Features
        • Advanced furnace design for superior resolution and baseline stability
        • High-sensitivity thermal flow detection system
        • Multi-segment programming: heating, cooling, and isothermal modes
        • User-friendly dual control system (instrument + software control)
        • Imported chips with shielded anti-interference circuitry
        • High-sensitivity sensor using heat fusion technology
        • Wide temperature range up to 600°C
        • Automatic gas switching system (dual gas channels)
        • 7-inch LCD touch screen with 24-bit color display
        • USB data interface for fast data transfer
        • Multi-point temperature calibration function
        • Standard calibration materials included (Indium, Tin, Lead)


    Working Principle
    The DZ-DSC300 operates based on the Differential Scanning Calorimetry principle, which measures the heat flow difference between a sample and a reference under controlled temperature conditions.
    When the sample undergoes physical or chemical transitions (such as melting, crystallization, or glass transition), it absorbs or releases heat. The instrument precisely detects these heat flow differences using a highly sensitive sensor system.
    The data is processed in real time, generating a thermal curve (DSC curve) that reflects material energy changes as a function of temperature or time. This allows accurate analysis of phase transitions, reaction kinetics, and thermal properties.


    Technical Specifications
    Parameter Specification
    Model DZ-DSC300
    Temperature Range Room Temperature to 600°C
    Temperature Accuracy 0.001°C
    Temperature Stability ±0.01°C
    Heating Rate 0.1 – 100°C/min
    Isothermal Time Programmable
    Control Modes Heating / Cooling / Isothermal (Fully Automatic)
    Scanning Modes Heating Scan / Cooling Scan
    DSC Range 0 – ±600 mW
    DSC Resolution 0.01 µW
    DSC Sensitivity 0.001 mW
    Power Supply AC 220V / 50Hz (Customizable)
    Gas Control Dual-channel automatic switching
    Gas Flow Range 0 – 300 mL/min (Customizable)
    Gas Pressure ≤ 5 MPa
    Display 7-inch LCD Touch Screen (24-bit color)
    Data Interface Standard USB
    Calibration Materials Indium, Tin, Lead
    Software Multi-point temperature calibration system

    Typical Applications
    Polymer & Materials Research
        • Glass transition temperature (Tg) analysis
        • Polymer melting and crystallization studies
        • Curing and crosslinking reactions
    Chemical Industry
        • Reaction heat measurement
        • Oxidation induction time (OIT)
        • Thermal stability evaluation
    Pharmaceutical Industry
        • Drug polymorphism analysis
        • Stability testing of active ingredients
        • Melting point and purity evaluation
    Metallurgy & Inorganic Materials
        • Phase transition studies
        • Alloy thermal behavior analysis
        • Crystal transformation research
    Quality Control Applications
        • Incoming material inspection
        • Batch consistency testing
        • Product thermal performance verification
    Academic & Research Institutions
        • Advanced thermal analysis research
        • Material development experiments
        • Thermodynamic studies


    DZ-DSC300 vs Conventional DSC Systems
    Feature DZ-DSC300 DSC Conventional DSC
    Temperature Range RT – 600°C Narrower range
    Temperature Precision 0.001°C Lower precision
    DSC Resolution 0.01 µW Higher noise level
    Baseline Stability Excellent Moderate
    Sensor Technology Heat fusion sensor Traditional welded sensor
    Gas Control Dual automatic switching Manual or single gas
    Control System Dual (software + instrument) Single control mode
    Calibration Multi-point automatic Basic calibration
    Data Interface USB Limited

    FAQ
    1. What is the DZ-DSC300 used for?
    It is used for measuring thermal transitions in materials, including melting, crystallization, glass transition, curing reactions, and thermal stability analysis.
    2. What materials can be tested?
    The instrument is suitable for polymers, metals, ceramics, pharmaceuticals, and composite materials.
    3. What is DSC analysis?
    DSC measures heat flow differences between a sample and reference as a function of temperature, revealing material phase transitions and thermal behavior.
    4. What is the maximum temperature range?
    The DZ-DSC300 operates from room temperature up to 600°C.
    5. Does it support automated testing?
    Yes. It supports fully automatic programming including heating, cooling, and isothermal processes.
    6. What gases are used in DSC analysis?
    Typically inert gases such as nitrogen are used, with automatic dual-channel gas switching support.
    7. Can it be calibrated by users?
    Yes. The system supports user calibration using standard materials such as indium, tin, and lead.


    Why Choose DZ-DSC300?
    The DZ-DSC300 Differential Scanning Calorimeter delivers high-precision thermal analysis with exceptional sensitivity, stability, and automation capability. With advanced sensor technology, multi-segment temperature programming, and high-resolution heat flow detection, it is an ideal solution for polymer research, chemical analysis, pharmaceutical testing, and advanced material development.




  • FAQ
    1. What is the DZ-DSC300 used for?
    It is used for measuring thermal transitions in materials, including melting, crystallization, glass transition, curing reactions, and thermal stability analysis.
    2. What materials can be tested?
    The instrument is suitable for polymers, metals, ceramics, pharmaceuticals, and composite materials.
    3. What is DSC analysis?
    DSC measures heat flow differences between a sample and reference as a function of temperature, revealing material phase transitions and thermal behavior.
    4. What is the maximum temperature range?
    The DZ-DSC300 operates from room temperature up to 600°C.
    5. Does it support automated testing?
    Yes. It supports fully automatic programming including heating, cooling, and isothermal processes.
    6. What gases are used in DSC analysis?
    Typically inert gases such as nitrogen are used, with automatic dual-channel gas switching support.
    7. Can it be calibrated by users?
    Yes. The system supports user calibration using standard materials such as indium, tin, and lead.
