DYCZ-25D Dual Vertical Electrophoresis System

Product ID：SHFZdy015

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDYCZ-25D

Brand NameBJLIUYI

Payment TermsTT，PAYPAL，Alibaba.com Pay

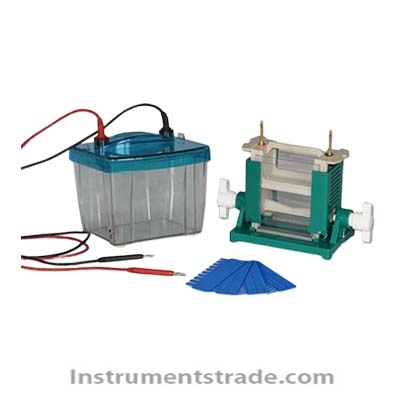

DYCZ-25D Dual Vertical Electrophoresis System

Product Overview
The DYCZ-25D Dual Vertical Electrophoresis System is designed for protein gel electrophoresis in research and analytical laboratories. Developed as an upgraded version of the established DYCZ-24DN mini dual vertical electrophoresis system, it features a clamping structure for secure gel chamber positioning, in-situ gel casting, and an optimized heat dissipation design.
The system accommodates two gel plates of different specifications, providing flexibility for different sample separation requirements. Its durable polycarbonate construction, transparent lower chamber, and simplified installation process support convenient operation and reliable electrophoresis performance.

Key Features
• In-Situ Gel Casting: Gel chambers are installed directly on the electrophoresis unit, allowing gel preparation and electrophoresis in the same position.
• Dual-Gel Compatibility: Accommodates two gels of different specifications, supporting both mini-gel and longer-gel separation requirements.
• Leak-Resistant Clamping Design: The clamping structure improves gel chamber positioning and helps reduce buffer leakage during operation.
• Efficient Heat Dissipation: Multiple cooling features help control heat generated during electrophoresis and maintain suitable operating conditions.
• Bubble Reduction: V-shaped positive-electrode protection strips and side openings help bubbles detach from the electrode, supporting effective contact between the platinum wire and buffer.
• Durable Construction: The high-strength injection-molded polycarbonate body provides durability, while the transparent lower chamber allows visual monitoring of the electrophoresis process.
• Convenient Operation: A simplified clamping and installation design facilitates routine laboratory use.

Working Principle
The DYCZ-25D operates by applying an electric field across a protein-containing gel immersed in electrophoresis buffer. Charged protein molecules migrate through the gel matrix according to their electrophoretic properties. The gel matrix provides separation based on molecular mobility; in SDS-PAGE, proteins are commonly separated primarily by molecular weight.
The instrument supports vertical gel electrophoresis with compatible gel plates and sample combs. Its buffer chamber provides the conductive medium required for current flow, while the integrated heat management features help limit temperature buildup during operation. A magnetic stir bar can be placed in the approximately 10 mm clearance beneath the chamber, when used with a suitable magnetic stirrer, to promote buffer mixing and temperature uniformity.

Technical Specifications

Parameter	Specification
Product Model	DYCZ-25D
Product Type	Dual vertical electrophoresis system
Primary Application	Protein gel electrophoresis
Maximum Power Supply Voltage	200 V
Gel Plate Dimensions	83 × 73 mm; 83 × 95 mm
Sample Comb Options	10-well and 15-well
Comb Thickness	1.0 mm and 1.5 mm
Total Buffer Capacity	1,350 mL
External Dimensions (L × W × H)	175 × 163 × 165 mm
Weight	1.0 kg
Construction Material	High-strength polycarbonate
Gel Casting Method	In-situ gel casting

Applications
• Protein separation in biochemical and molecular biology laboratories.
• SDS-PAGE analysis for protein molecular weight estimation and sample characterization.
• Research involving protein expression, purification, and quality assessment.
• Laboratory teaching and training in electrophoresis techniques.
• Routine protein analysis in biotechnology, life science, and academic research laboratories.

Applicable Standards
The DYCZ-25D is designed for laboratory protein gel electrophoresis. The supplied specifications do not identify specific regulatory certifications or test standards.
For SDS-PAGE workflows, users should follow the relevant laboratory protocols and applicable electrophoresis procedures. Confirm any required electrical safety certifications or compliance documentation with the supplier before purchase.

Comparison

Comparison Dimension	DYCZ-25D Dual Vertical Electrophoresis System	Typical Mini Vertical Electrophoresis System
Gel Configuration	Supports two gels of different specifications	Depends on the model; often designed for a specific gel format
Gel Casting	In-situ gel casting on the main unit	May require a separate casting arrangement
Gel Plate Options	83 × 73 mm and 83 × 95 mm	Varies by model
Heat Management	Multiple heat dissipation and buffer-mixing design features	Depends on chamber design and buffer capacity
Installation	Clamping structure for positioning the gel chamber	Varies by design
Buffer Capacity	1,350 mL	Varies by model
Typical Use	Flexible protein separation with different gel sizes	Routine protein electrophoresis using compatible mini-gels

The DYCZ-25D is suitable for laboratories that need flexible gel-format options and integrated gel casting. Selection should also consider gel dimensions, sample throughput, buffer capacity, and compatibility with existing electrophoresis power supplies.

FAQ
1. What is the DYCZ-25D dual vertical electrophoresis system used for?
It is primarily used for protein gel electrophoresis, including protein separation and analysis in research, biotechnology, and educational laboratories.
2. Can the DYCZ-25D perform in-situ gel casting?
Yes. The gel chamber can be installed directly on the main electrophoresis unit, allowing gel casting and electrophoresis to be performed in the same position.
3. What gel sizes are compatible with this system?
The specified gel plate dimensions are 83 × 73 mm and 83 × 95 mm. Confirm the required plate configuration and accessories before ordering.
4. Which sample comb options are available?
The system supports 10-well and 15-well combs with thicknesses of 1.0 mm and 1.5 mm.
5. What is the buffer capacity of the DYCZ-25D?
The total buffer capacity is 1,350 mL.
6. How does the system manage heat during electrophoresis?
It incorporates a buffer heat-absorption design, a V-shaped positive-electrode protection strip, side openings to help release electrode bubbles, and ventilation openings in the upper cover. A magnetic stir bar can also be accommodated beneath the chamber for buffer mixing when used with a suitable stirrer.
7. Is a power supply included with the DYCZ-25D?
The supplied product information does not specify whether a power supply is included. Confirm the package contents and compatibility with the supplier before purchasing.
8. What should buyers consider when selecting a vertical electrophoresis system?
Consider gel dimensions, the number of gels required per run, comb configuration, buffer capacity, heat management, power supply compatibility, and the intended protein separation method. For SDS-PAGE, also verify compatibility with the required gel preparation accessories and laboratory protocols.
