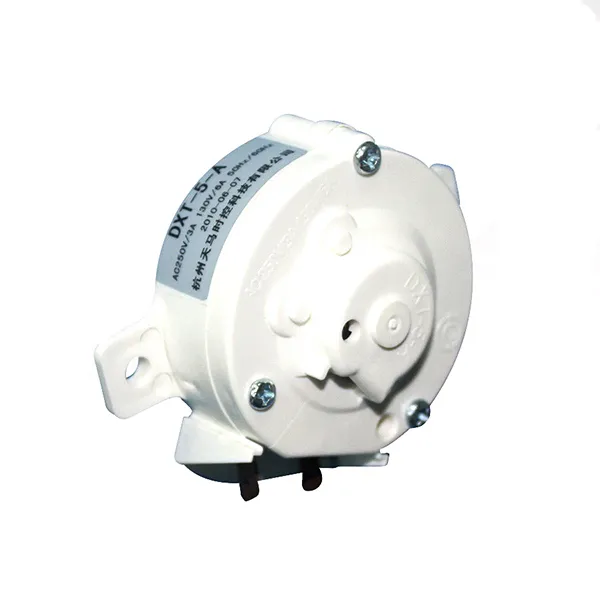

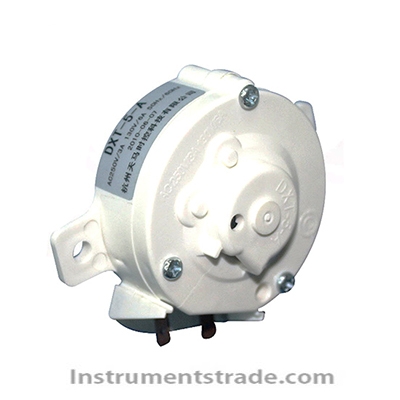

DXT-5-A Insert-type Dehydration Timer Introduction:
The DXT-5-A plug-in dehumidification timer features a novel structure, precise time control, and easy installation. It is widely used in washing machines and other equipment, offering advantages such as low noise and long service life.
Technical specifications:
Timing Range: 5 minutes - 15 minutes
Working environment: T50
Rated frequency: 50/60Hz
Rated voltage: 130V/250V
Rated current: 7A
Terminal specification: 187#
Working environment temperature: -10°C to 55°C.
Insulation resistance: ≥100MΩ.
Insulation strength: 1500V/min.
Waterproof rating: IP00.
Operating torque: ≤0.638N·m.
Service life: ≥10,000 cycles.
