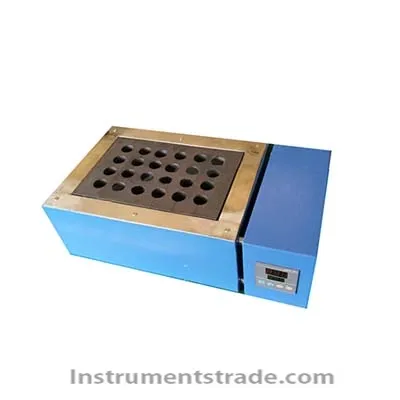

DTD-36 Intelligent Graphite Digester

Product ID:SYZYXJdrxj051

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDTD-36
    Brand NameCHANGZHOUYITONG
    Payment TermsTT,PAYPAL
    DTD-36 Intelligent Graphite Digester
    Introduction:
    DTD-36 Intelligent Graphite Digester is a new constant temperature digestion instrument launched by Changzhou Yitong Instrument.
    The DTD-36 intelligent graphite digestion instrument uses graphite material as the heating element, with good uniformity of digestion temperature. It can achieve batch sample processing, improve the quality of sample digestion, and is a suitable sample digestion equipment for elemental analysis.
    The pre-treatment time for digestion samples accounts for about 70% of the entire analysis and testing time. The DTD-36 graphite digestion instrument has a 36 well sample processing capacity, which effectively improves digestion efficiency and saves waiting time for pre-treatment. Therefore, it is widely used in fields such as agriculture, food, environment, disease control, and scientific research in developed countries.
    characteristic:
    1. Heating equalization
    Using graphite as the heating module, three-dimensional surround heating provides uniform heat for all samples, eliminating heating blind spots. Wrapped heating has higher efficiency and compensates for the shortcomings of flat heating.
    2. Easy operation and maintenance of the instrument
    The surface of the graphite body is coated with Teflon coating, which is easy to clean and corrosion-resistant. There are no metal parts around the entire machine, making it safe to use in corrosive environments such as strong acids and alkalis. 36 hole design, capable of batch digestion, simple and time-saving operation.
    3. Actual sample temperature
    The optional external temperature probe ensures the true temperature of the sample and the digestion is in place.
    4. Safer and more economical
    Surrounding heating, higher digestion efficiency, one-time batch processing. The overall time is shortened, saving manpower and resources; Open digestion, safer and faster.
    Technical parameters:
    Multiple grooves for digestion Sample holes: 36 holes (customizable)
    Aperture: 30mm (standard with 36 holes)
    Graphite size: 270mm * 270mm
    Temperature control range: room temperature -300
    Temperature control accuracy: ± 0.2
    Power: 1500w
    Time setting: within 24 hours
    Heating element: High purity graphite (sprayed with PTFE protective film)
    Size: 391mm × 321mm × 136mm
