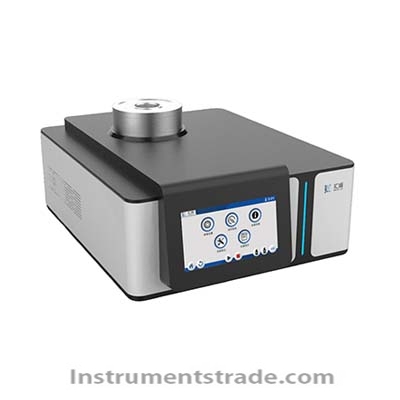

DSC-600C -40 ° C Low Temperature Differential Scanning Calorimeter

Product ID：WLcs060

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDSC-600C

Brand NameNJHUICHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

DSC-600C -40 ° C Low Temperature Differential Scanning Calorimeter
Introduction:
Differential Scanning Calorimetry (DSC), as a classic thermal analysis method for thermal effects under controllable program temperature, has been widely used in various fields of materials and chemistry, including research and development, process optimization, quality control, and failure analysis. By using DSC method, we can study the phase transition of inorganic materials, the melting and crystallization process of polymer materials, the polymorphic phenomenon of drugs, and the solid/liquid phase ratio of foods such as oils and fats. Instrument purpose: To measure physical and chemical changes related to heat, such as glass transition temperature, melting point, melting temperature, crystallization and crystallization heat, phase transition reaction heat, product thermal stability, curing/crosslinking, oxidation induction period, etc.
characteristic:
1. The integrated design of the whole machine reduces signal loss and interference, greatly improves signal sensitivity and resolution, and can obtain a more stable baseline.
2. Equipped with an imported high-frequency core control processor, the processing speed is faster and the control is more efficient.
3. Adopting imported high-sensitivity sensors effectively improves the sensitivity and accuracy of DSC signals.
4. Independent atmosphere control can be achieved through software intelligent settings, and the instrument can automatically switch the gas path system, resulting in higher experimental efficiency.
5. The lower and upper computers of the equipment system have multi-point temperature correction functions, which meet the needs of different experimental scenarios and improve the accuracy of temperature testing.
6. It has two optional experimental modes, FTC and STC, with more friendly and flexible temperature control, which can meet the needs of different application scenarios and experiments. The temperature control during the experimental process is more accurate, and the analysis of sensor signals is more efficient.
7. The fully temperature control system adopts an optimized adaptive dynamic PID algorithm, which greatly avoids the disadvantage of manual adjustment required by traditional PID algorithms and improves the robustness of dual-mode temperature control.
8. The 12 step program temperature control setting makes the experimental methods more diverse.
The sampling frequency of sensor signals can be set between 1 and 10Hz, making the experimental method more flexible and the data more controllable.
10. Independent dual temperature sensors can simultaneously test the furnace temperature and sample temperature separately.
11. The equipment system can conduct experiments on materials related to heating, cooling, and isothermal processes.
12. The instrument adopts USB bidirectional communication, supports self recovery connection, is designed with intelligent software, has baseline deduction function, automatic plotting of experimental process, and intelligent processing of various data, such as enthalpy calculation, glass transition temperature, oxidation induction period, melting point and crystallization of substances, etc.
Technical parameters:

DSC range	0～±2000mW
temperature range	-Mechanical refrigeration from 40 ℃ to 600 ℃
toggle rate	16.6Hz
heating rate	0.1～100℃/min
cooling rate	0.1～50℃/min
Temperature Accuracy	0.001℃
temperature resolution	0.01℃
Temperature fluctuations	±0.01℃
Temperature repeatability	±0.01℃
DSC noise	0.001mW
DSC resolution	0.01μW
DSC accuracy	0.001mW
DSC sensitivity	0.001mW
experimental mode	FTC and STC modes can be set arbitrarily
Program temperature control	Flexible setting of 12 stage temperature control throughout the entire stage
temperature control	Heating, constant temperature, cooling
scan type	Heating, cooling, isothermal scanning
atmosphere control	Two atmospheres can be freely set, and the instrument automatically switches
gas flow	0～200mL/min
Pressure	0.2Mpa
Display mode	24 bit color 7-inch LCD touch screen display
data interface	Standard USB interface
Sample Rate	1~10Hz programmable settings
instrument calibration	Both the lower computer and the upper computer have multi-point temperature correction function
Parameter standards	Equipped with standard substances, users can correct temperature and enthalpy by themselves
working voltage	AC220V/50Hz or customized
working power	300W

Introduction:
Differential Scanning Calorimetry (DSC), as a classic thermal analysis method for thermal effects under controllable program temperature, has been widely used in various fields of materials and chemistry, including research and development, process optimization, quality control, and failure analysis. By using DSC method, we can study the phase transition of inorganic materials, the melting and crystallization process of polymer materials, the polymorphic phenomenon of drugs, and the solid/liquid phase ratio of foods such as oils and fats. Instrument purpose: To measure physical and chemical changes related to heat, such as glass transition temperature, melting point, melting temperature, crystallization and crystallization heat, phase transition reaction heat, product thermal stability, curing/crosslinking, oxidation induction period, etc.
