Sales DSC-500LC UV illumination differential scanning calorimeter，Manufacturer

Position: Home > > Physical property test > Thermal analysis instrument > Differential scanning calorimeter > DSC-500LC UV illumination differential scanning calorimeter for Light Cured Composites

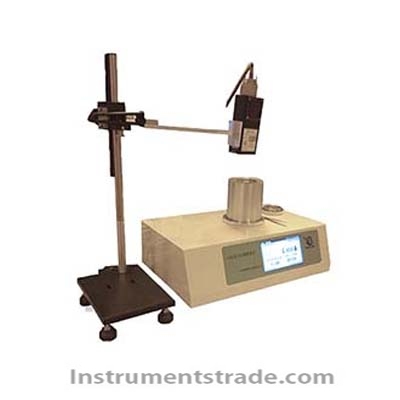

DSC-500LC UV illumination differential scanning calorimeter for Light Cured Composites

Product ID：WLcs019

Price: Please inquire PDF Format

Supply Ability:50SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberDSC-500LC

Brand NameSHYINGNUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

Features:
1, 7-inch industrial-grade wide-screen touch structure, display information is rich, including set temperature, sample temperature, oxygen flow, nitrogen flow, differential heat signal, various switch states.
2. Up and down lifting optical adjustment bracket can adjust the illumination distance between the illumination source and the sample very conveniently.
3, high-temperature insulation quartz glass furnace cover, not only to maintain the effect of thermal insulation, but also facilitate the illumination and observation of the light source.
4. Optional light source control system. Precise control of light source on and sample cure time calculations. It is very convenient to observe the wavelength of light, the intensity of light, and the light at a specific temperature.
The impact of the exposure time on the product. Quickly determine material stability and aging effects.
5, USB3.0 communication mode, fast and massive data transmission, strong versatility, reliable communication without interruption, support self-recovery connection function.
6. One-piece fixed furnace structure, no need to lift the furnace body up and down, convenient for loading, and the temperature rise and fall rate can be adjusted arbitrarily.
7. The detachable sample support rod is flexible and replaceable to meet different needs of users and facilitate cleaning and maintenance after sample contamination.
8. The furnace body is heated by electric heating wire, and the furnace body is cooled by electronic semiconductor refrigeration. The structure is compact and the volume is small. No external cooling source and cumbersome refrigeration system, heating up
The temperature is fast and the minimum cooling temperature can reach -40 degrees.
9, dual temperature probe to ensure high repeatability of sample temperature measurement. A temperature probe is installed on the furnace wall for PID control of the temperature of the entire furnace, but due to the thermal habit of temperature
Sex, the temperature transmitted to the sample has a certain deviation, and the deviation is different in spring, summer, autumn and winter. Therefore, the single temperature probe is used for temperature measurement and temperature control, whether it is a differential heat signal or a temperature signal.
No. The error is relatively large; the instrument has a temperature probe installed at the bottom of the sample to measure the true temperature of the sample, and uses our special temperature control technology to control
The furnace wall temperature causes the sample temperature to reach the set temperature.
10. The gas mass flow meter automatically switches the two-way gas flow, and the switching speed is fast and the stabilization time is short.
11. Standard samples are standard to facilitate the customer to adjust the constant temperature coefficient.
12. The software adapts to the computer screen of each resolution, and the software automatically adjusts the display mode of each curve according to the size of the computer screen. Support notebook, desktop, support WIN XP, WIN 7, WIN 8,
WIN10 and other operating systems.
13. The user self-programming program realizes full automation of the measurement steps. The software provides dozens of instructions, and users can flexibly combine and save each instruction according to their own measurement steps. complicated
The operation is simplified into a one-button operation.
14, high-grade aluminum alloy instrument box, built-in high-pressure elastic foam packaging, customers can carry and move at will.
Technical Parameters:

Temperature range	-40℃~500℃
Temperature resolution	0.01℃
Temperature fluctuation	±0.1℃
Heating rate	0.1~80°C/min optional
Temperature control method	PID temperature adjustment
DSC range	0～±500mW
DSC resolution	0.001μW
DSC sensitivity	0.001μW
Atmosphere control	Nitrogen and oxygen two-way gas control
Working power supply	AC 220V 50Hz
