DS-01 flow integrator

Product ID：HQQTpqsb012

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDS-01

Brand NameBJXIAOTAO

Payment TermsTT，PAYPAL，Alibaba.com Pay

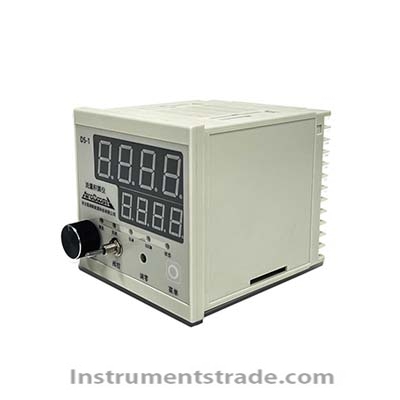

DS-01 flow integrator
Introduction:
The DS series multifunctional flow controller is used for displaying and controlling gas mass flow controllers (MFCs), and can provide flow upper and lower limit alarm function, time timing control function, cumulative flow display and cumulative amount alarm function. The equipment has RS485 digital communication function, communication protocol compatible with MODBUS-RTU standard, can be connected with PLC and configuration software, and can achieve wireless control function. The DS series multifunctional flow controller can be used in conjunction with conventional analog gas mass flow controllers.
Technical parameters:

name	DS-01
power supply	220V AC
Output power supply	±15V(±%5) 400mA
Maximum power consumption	10W
input/output signal	Voltage: 0-5V
	Communication: RS485
	Wireless control: ZIGBEE
External dimensions	124X96X96 mm
Dimension	92.5x92.5 mm
weight	1kg
channel	one way
Accumulated traffic display	standard configuration
Wireless Control	Optional

Introduction:
The DS series multifunctional flow controller is used for displaying and controlling gas mass flow controllers (MFCs), and can provide flow upper and lower limit alarm function, time timing control function, cumulative flow display and cumulative amount alarm function. The equipment has RS485 digital communication function, communication protocol compatible with MODBUS-RTU standard, can be connected with PLC and configuration software, and can achieve wireless control function. The DS series multifunctional flow controller can be used in conjunction with conventional analog gas mass flow controllers.
