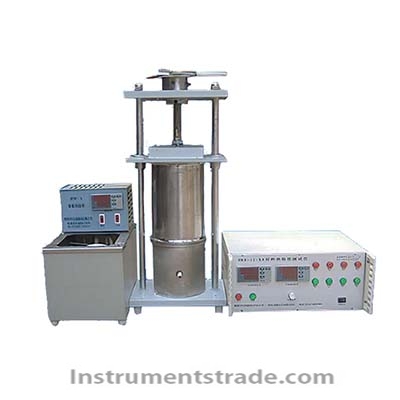

DRX-II-RW Material Thermal Conductivity Tester Introduction: This thermal conductivity meter is based on longitudinal heat flow technology and has the characteristics of convenience, speed, and accuracy. It can be used to measure the thermal conductivity, thermal diffusivity, and hot melt of various types of materials. The applicable thermal conductivity range is between 0.5-100W/MK, and it is suitable for sample types such as solids, powders, coatings, films, liquids, anisotropic materials, and other different forms of materials. Refer to standards GB5598-85, GB11205-89, MIL-I-49456A, ASTMD 5470-06, etc Insulation sheet, thermal conductive resin, thermal conductive fiberglass, etc. Liquid requires specific equipment Technical parameters: 1. Thermal conductivity range: 0.5-100W/MK, accuracy 3%, accuracy ≤± 3%, repeatability ≤± 1% 2. It can achieve specific heat analysis and measurement, as well as thermal diffusion coefficient analysis and testing, 3. Measurement accuracy of thermal diffusivity: 5%; Specific heat measurement accuracy: 7% 4. Measure temperature range of 20-300 ℃. 5. It is required to have a complete testing system and software platform. 6. The operation adopts fully automatic thermal analysis testing software to quickly and accurately analyze the experimental process parameters of the sample and output reports. 7. It can be equipped with different connectors to meet the detection requirements in various environments. Solid samples are required to have a diameter of 15-50mm and a thickness of 1-50mm.
Introduction: This thermal conductivity meter is based on longitudinal heat flow technology and has the characteristics of convenience, speed, and accuracy. It can be used to measure the thermal conductivity, thermal diffusivity, and hot melt of various types of materials. The applicable thermal conductivity range is between 0.5-100W/MK, and it is suitable for sample types such as solids, powders, coatings, films, liquids, anisotropic materials, and other different forms of materials. Refer to standards GB5598-85, GB11205-89, MIL-I-49456A, ASTMD 5470-06, etc Insulation sheet, thermal conductive resin, thermal conductive fiberglass, etc. Liquid requires specific equipment
