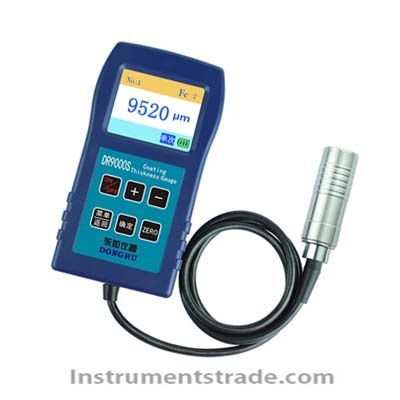

DR9000S Fireproof Coating Thickness Gauge Introduction: DR9000S Coating Thickness Gauge, also known as Fireproof Coating Thickness Gauge, is a professional non-destructive testing instrument that applies the principle of electromagnetic induction to measure the thickness of the coating layer on the surface of magnetic metal materials in accordance with national industry standards GB/T 4956-1985 and GB/T 4956-2003. It can measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel and iron) without damage (such as paint, electrophoresis, powder coating, galvanizing, chromium, copper, indium, enamel, rubber, enamel, anti-corrosion coating, paint, etc.). It is easy to use, convenient to carry, with a large LCD display screen, large font size, and backlight direct reading for clearer results. It uses imported high-quality metal material small probes, with precise and firm structure, better repeatability, and excellent performance. Mainly used for measuring the thickness of thick coatings, anti-corrosion coatings, and fireproof coatings. Characteristics: 1. Large scale range 0-10000um 2. Simple operation, fast testing speed, good sensitivity, and high measurement accuracy 3. Adopting alloy probes, sturdy and durable, with precise measurement 4. It has two measurement methods: continuous measurement and single measurement 5. It has four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and measurement frequency (No) 6. Large capacity storage, can be divided into 10 groups of storage, each group containing 200 pieces, with a total storage capacity of 2000 pieces of data 7. Data storage, viewing, and deletion function 8. Three calibration methods: zero point calibration, two-point calibration, and multi-point calibration 9. Upper and lower limit alarm function (can be set in single measurement mode) 10. The operation process is indicated by a buzzing sound (in single measurement mode) 11. Automatic recognition of iron-based and non-ferrous substrates 12. Conversion from metric to imperial system in μ m/Mil 13. Sunshine mode (used under strong light) 14. Bilingual version in Chinese and English 15. 2.3-inch large color screen with large font size display Technical parameters Measurement range: 0-10000 μ m (0-10mm) Usage environment: Temperature: 0 ℃ -60 ℃, humidity: 20% RH -90% RH, used in a non strong magnetic field environment Thinest substrate: 0.4mm Measurement accuracy: ± 3% H+2 μ m Resolution: 0.1 μ m/1 μ m (0.1 μ m below 100 μ m, 1 μ m above 100 μ m) Minimum substrate area of Φ 20.5mm Minimum curvature: convex 5mm; concave 25mm Dimensions: 130 (L) × 70 (W) × 25 (H) mm Weight: 100g Power supply: Three (No. 7) alkaline batteries
Introduction: DR9000S Coating Thickness Gauge, also known as Fireproof Coating Thickness Gauge, is a professional non-destructive testing instrument that applies the principle of electromagnetic induction to measure the thickness of the coating layer on the surface of magnetic metal materials in accordance with national industry standards GB/T 4956-1985 and GB/T 4956-2003. It can measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel and iron) without damage (such as paint, electrophoresis, powder coating, galvanizing, chromium, copper, indium, enamel, rubber, enamel, anti-corrosion coating, paint, etc.). It is easy to use, convenient to carry, with a large LCD display screen, large font size, and backlight direct reading for clearer results. It uses imported high-quality metal material small probes, with precise and firm structure, better repeatability, and excellent performance. Mainly used for measuring the thickness of thick coatings, anti-corrosion coatings, and fireproof coatings.
