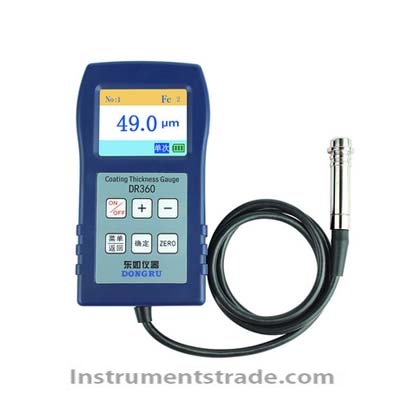

DR360 Coating Thickness Gauge Introduction: DR360 Coating Thickness Gauge is a professional non-destructive testing instrument used to measure the thickness of the coating layer on the surface of metal materials. It adopts the national GB/T 4956-1985 standard (magnetic method), and according to the principle of magnetic thickness measurement method, it can measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron) without damage (such as galvanized, chromium, indium, enamel, rubber, powder, paint, electrophoresis, enamel, anti-corrosion layer, spray coating, paint, asphalt, thin fireproof coating, etc.) This instrument is widely used in the painting industry, manufacturing industry, metal processing industry, chemical industry, commercial inspection and other testing fields. characteristic: 1. Simple operation, fast testing speed, good sensitivity, and high measurement accuracy 2. Adopting alloy probes, hard, durable, and precise 3. It has two measurement methods: continuous measurement and single measurement 4. It has four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and measurement frequency (No) 5. Large capacity storage, which can be divided into 10 groups of 200 each, with a total storage capacity of 2000 data 6. Data storage, viewing, and deletion function 7. Three calibration methods: zero point calibration, two-point calibration, and multi-point calibration 8. Upper and lower limit alarm function (can be set in single measurement mode) 9. The operation process is indicated by a buzzing sound (in single measurement mode) 10. Automatically identify iron-based and non-ferrous substrates 11. Conversion from metric to imperial system in μ m/Mil 12. Sunshine mode (used under strong light) 13. Bilingual version in Chinese and English 14. Manual/automatic shutdown function 15. Bluetooth synchronous data transmission function (customized) Technical Parameter Measurement range: 0-1250 μ m Usage environment: Temperature: 0 ℃ -60 ℃, humidity: 20% RH -90% RH, used in a non strong magnetic field environment Thinest substrate: 0.3mm Measurement accuracy: ± (1% -3%) H+1.5 μ m Resolution: 0.1 μ m/1 μ m (0.1 μ m below 100 μ m, 1 μ m above 100 μ m) Minimum substrate area of Φ 11.5mm Minimum curvature: convex 5mm; concave 25mm Dimensions: 130 (L) × 70 (W) × 25 (H) mm Weight: 100g Power supply: Three (No. 7) alkaline batteries
Introduction: DR360 Coating Thickness Gauge is a professional non-destructive testing instrument used to measure the thickness of the coating layer on the surface of metal materials. It adopts the national GB/T 4956-1985 standard (magnetic method), and according to the principle of magnetic thickness measurement method, it can measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron) without damage (such as galvanized, chromium, indium, enamel, rubber, powder, paint, electrophoresis, enamel, anti-corrosion layer, spray coating, paint, asphalt, thin fireproof coating, etc.) This instrument is widely used in the painting industry, manufacturing industry, metal processing industry, chemical industry, commercial inspection and other testing fields.
