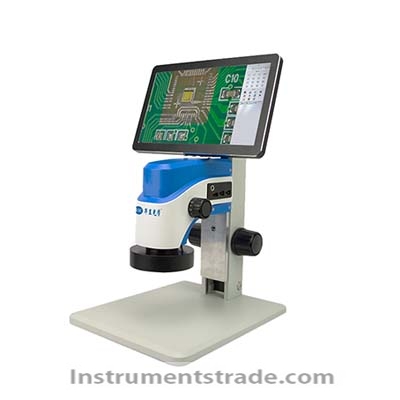

Dolphin integrated video microscope Introduction: The Dolphin video microscope all-in-one series, with its high-definition video imaging, can effectively reduce the visual fatigue of operators, greatly Reducing the observation intensity of vision can greatly improve the accuracy and efficiency of product inspection for inspection personnel. And the operation interface The menu is set in a user-friendly way, making operation simple and easy to learn. It is widely used for measuring the pitch, outer diameter, thread angle, shape, and cutting tools of workpieces, as well as their dimensional or contour profiles Conduct microscopic magnification measurement to inspect the surface condition of the workpiece, and measure angles, lengths, etc. Features: 1. Compliant with the internationally popular HD standard, with a resolution of 1920*1080; 2. One-button switch, supports wireless mouse control, and can satisfy both traditional stereoscopic and video magnification requirements; 3. Use of one-wire connection (eliminating the traditional issue of excessive and cluttered power supplies); 4.60 frames per second high-speed image capture, with absolutely no smearing or delay; 5. Humanized menu settings, featuring an automatic hiding function; 6. Edge enhancement mode, which improves the effect of enhancing the product image contour; 7. The LED light source allows for adjustable illumination intensity, and the light source replacement mechanism features user-friendly spring clips, making it convenient and quick to use; 8. The all-in-one machine comes with factory settings, solving the troublesome and laborious problem of traditional customer assembly, saving users time and effort Pre-operation training time, simple operation; 9. Human-centered design, based on ergonomics, reduces the strain on eyesight caused by manual observation through eyepieces Fatigue can facilitate direct observation by enterprise operators, which to some extent also reduces the pressure on enterprise human resources recruitment. Technical Specifications: Model: Dolphin Body Microscope Optical size: 1/2 Resolution: 1920*1080 Frame rate: 60fps Interface: Dual USB interfaces Magnification: Optional 14X-96X (or 24X-154X) Field of view: 3-18mm Operation mode: Mouse operation Monitor: Optional 11.6-inch or 21.5-inch Working distance: 110mm Operating voltage: DC 12v Outline dimensions: 320*260*340mm Weight: 4kg
Dolphin integrated video microscope Introduction: The Dolphin video microscope all-in-one series, with its high-definition video imaging, can effectively reduce the visual fatigue of operators, greatly Reducing the observation intensity of vision can greatly improve the accuracy and efficiency of product inspection for inspection personnel. And the operation interface The menu is set in a user-friendly way, making operation simple and easy to learn. It is widely used for measuring the pitch, outer diameter, thread angle, shape, and cutting tools of workpieces, as well as their dimensional or contour profiles Conduct microscopic magnification measurement to inspect the surface condition of the workpiece, and measure angles, lengths, etc.
