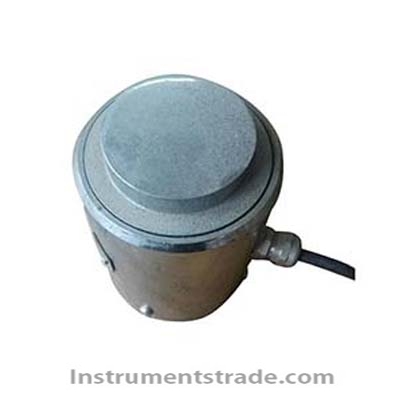

DMHZ strain load sensor

Product ID：CLQTlxlcly035

Price: US$580.00 ~ US$1,280.00 PDF Format

Supply Ability:550 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDMHZ

Brand NameNANJINGDANMO

Payment TermsTT，PAYPAL，Alibaba.com Pay

DMHZ strain load sensor
Introduction:
This product is suitable for load test in various structural tests. It adopts special structural design, high-quality spring steel, precision machining, heat treatment, temperature self-compensating low creep metal foil sensor resistance strain gauge, paste group bridge moisture-proof sealing process, output sensitivity high, linear, repeating Good performance and stability, the use of circular indenter can overcome the effect of eccentric load. According to customer requirements, it can be made into waterproof and sealed products.
Technical Parameters:

Range	0-1000 tons can be customized
Sensitivity	2.0 ± 0.1 mv / V
Comprehensive accuracy	0.2% FS
Bridge resistance	350-1400Ω
Excitation voltage	9 ~ 15 VDC
range of working temperature	-20 ~ 70 ℃
Allow overload	150% FS
Sealing level	IP67, high pressure waterproof type can be customized
Supply bridge voltage	2-10V
Material	alloy steel
Qualify	5 core aviation plug, 4 core shielded cable
Optional instruments	WH-1000 data sampler, DM-YB1820 series strain collector
