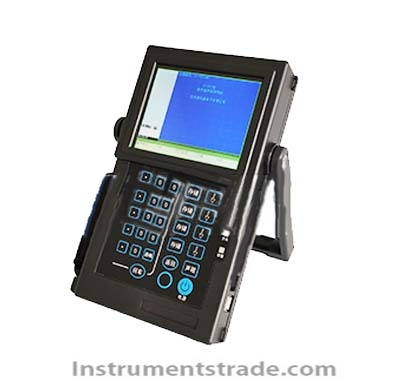

DMD-559Win Five Frequency Ten Channel Far Field Eddy Current Meter Introduction: Adopting a Windows based graphical user interface, utilizing advanced computer digital technology, far-field eddy current technology, and multiple frequency mixing technology; Obtain and display the detection signal graphics of eight conventional eddy current channels and two far-field eddy current channels on the same screen at once. Instrument applications: Bearing outer rings, bearing inner rings, gear blanks, ring metal parts, automotive components; Non destructive testing of copper pipes, steel pipes, stainless steel pipes, welded pipes, aluminum-plastic pipes, steel wires, double-layer pipes, copper-clad aluminum, copper-clad steel, aluminum wire metal bars and other production lines online and offline;. Non destructive testing of oil casing, sucker rods, hollow shafts, etc; Testing of condenser pipes, air conditioner pipes, automotive oil pipes, etc; Suitable for non-destructive testing of various metal tubes, rods, and wires characteristic: 1. Ten independent detection channels 2. Twelve hardware alarm output interfaces 3. Fast analog/digital electronic balancing 4. Automatic/manual amplitude and phase measurement 5. Non equal amplitude phase/amplitude alarm 6. Equipped with multi frequency detection configuration analysis function 7. Probe excitation amplitude can be adjusted by keyboard 8. Massive storage of independent detection programs and inspection data 9. Display of four impedance plane graphics and six strip time base scanning curves 10. Expandable C-scan display function 11. Background selection between Cartesian coordinate system and polar coordinate system 12. Two types of probes can be connected simultaneously to achieve simultaneous or separate thickness testing, with one machine used as two machines 13. Industrial control models or laptop models are optional, and the host and laptop adopt USB2.0 high-speed communication connection mode 14. Equipped with far-field detection function 15. It is not only a complete remote field eddy current testing system, but also has the advanced performance of conventional multi frequency and multi-channel eddy current testing instruments. Technical parameters: Frequency range: 1Hz~6MHz (far-field frequency 5Hz~5KHz); Gain: 0-90dB, step size 0.5dB Gain/phase measurement: manual/automatic Phase rotation: 0~360 ° step by 1 ° Display mode: dots/lines/blanking High pass filtering: 0~500 Hz Low pass filtering: 10-10000Hz Number of digital filter points: 1-100
Introduction: Adopting a Windows based graphical user interface, utilizing advanced computer digital technology, far-field eddy current technology, and multiple frequency mixing technology; Obtain and display the detection signal graphics of eight conventional eddy current channels and two far-field eddy current channels on the same screen at once. Instrument applications: Bearing outer rings, bearing inner rings, gear blanks, ring metal parts, automotive components; Non destructive testing of copper pipes, steel pipes, stainless steel pipes, welded pipes, aluminum-plastic pipes, steel wires, double-layer pipes, copper-clad aluminum, copper-clad steel, aluminum wire metal bars and other production lines online and offline;. Non destructive testing of oil casing, sucker rods, hollow shafts, etc; Testing of condenser pipes, air conditioner pipes, automotive oil pipes, etc; Suitable for non-destructive testing of various metal tubes, rods, and wires
