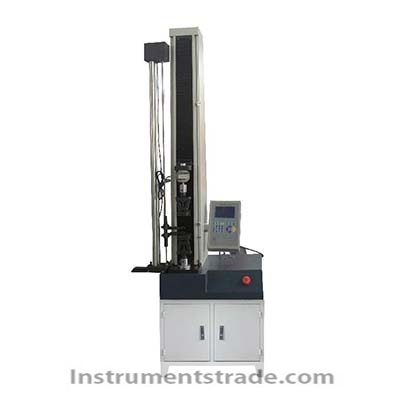

DLB digital display electronic universal testing machine for Material comprehensive test

Product ID:WSHwn025

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDLB
    Brand NameYIMA
    Payment TermsT/T,paypal
    Introduction:
    This machine is divided into single value display and double value display. It is suitable for measuring the tensile, tearing, peeling and other mechanical properties of materials, and can also measure the compressive force value of materials. The native dual display configuration automatic elongation tracking device, stepless speed regulation, automatic rapid return, force sensor digital display force value, intuitive, high accuracy.
    Features:
    1, automatically cleared: before the test, automatically cleared
    2, automatic transmission: test speed during the test process can be pre-run, but also can be arbitrarily changed according to the speed.
    3, showing the value of calibration: the system can be accurate calibration of force values.
    4, display method: liquid crystal display, the force value data directly, the elongation value is automatically displayed
    5, limit protection: with automatic limit protection.
    6, a multi-purpose machine: equipped with different sensors, can achieve a multi-purpose machine.
    Technical Parameters:
    Executive Standard: GB / T 2611-2007
    Resolution accuracy: 0.01 ~ 0.1N
    System accuracy: less than 0.3%
    Display range: 0 ~ 99999.9N
    Tensile speed range: 25 ~ 500mm / min (special request separately)
    Activities of the largest holder trip: 900mm
    Power consumption: less than 15W (digital form) machine power ≤ 800W
    Power supply voltage: ~ 220V ± 10%


  • Introduction:
    This machine is divided into single value display and double value display. It is suitable for measuring the tensile, tearing, peeling and other mechanical properties of materials, and can also measure the compressive force value of materials. The native dual display configuration automatic elongation tracking device, stepless speed regulation, automatic rapid return, force sensor digital display force value, intuitive, high accuracy.
