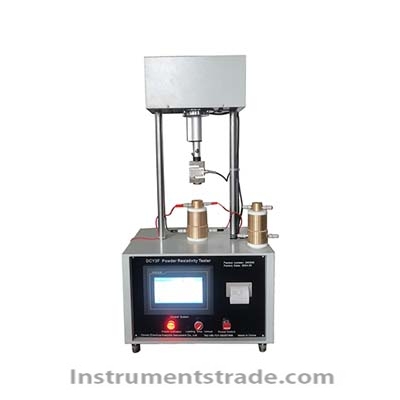

DCY3F powder resistivity tester Introduction: This resistivity tester is a specialized instrument for measuring the conductivity of carbon materials. This instrument adopts a hydraulic transmission system as the loading mechanism, with a large transmission ratio and smooth loading. It is equipped with an automatic display pressure standard dynamometer, a high-precision stable current source power supply, automatic display of current and voltage, and is stable, accurate, intuitive, and convenient. The fully automatic touch screen measurement and control system processes data and prints test results. This instrument can be used to test the electrical resistivity of powdered materials according to ISO 10143-1995 and YS/T 587.6. Technical parameters: Maximum pressure: 300Kg; Maximum lifting distance: 100mm; Current output: 0-5A, accuracy: 0.01A; Voltage input: 0-20mV, accuracy: 0.01mV; Inner diameter of powder material: small cylinder ≥ 20mm, large cylinder ≥ 30mm; Internal cross-sectional area of powder cylinder: small cylinder ≥ 314mm2, large cylinder ≥ 700mm2 Distance between voltage terminals: small tube 10mm, large tube 20mm; Measurement range of resistivity: 1-1800 μ Ω· M; Powder resistivity calculation: attached is a quick reference table
Introduction: This resistivity tester is a specialized instrument for measuring the conductivity of carbon materials. This instrument adopts a hydraulic transmission system as the loading mechanism, with a large transmission ratio and smooth loading. It is equipped with an automatic display pressure standard dynamometer, a high-precision stable current source power supply, automatic display of current and voltage, and is stable, accurate, intuitive, and convenient. The fully automatic touch screen measurement and control system processes data and prints test results. This instrument can be used to test the electrical resistivity of powdered materials according to ISO 10143-1995 and YS/T 587.6.
