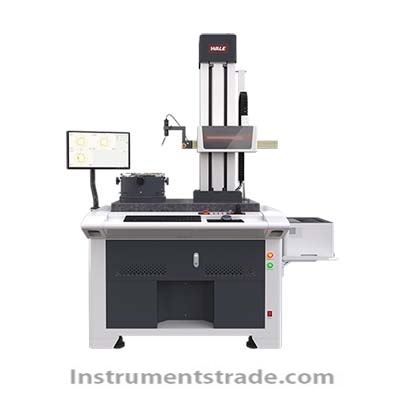

CYA series automatic centering and leveling cylindricality instrument

Product ID：CLBMydy031

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCYA series

Brand NameSXWEIER

Payment TermsTT，PAYPAL，Alibaba.com Pay

CYA series automatic centering and leveling cylindricality instrument
Introduction:
The CYA series is a fully automatic cylindrical instrument based on an air-bearing spindle, high-precision grating, and inductive probe. Its core advantage lies in automatic centering and leveling (four-point preset + closed-loop fine adjustment), which significantly reduces the time required for clamping and calibration. It enables unattended batch measurement and meets standards such as GB/T 7235 and ISO 12181.
Features:
1. Automatic centering and leveling: Four-point pre-adjustment (correctable even beyond the range) + closed-loop fine adjustment, completed with one button
2. Measurement items: roundness, cylindricity, straightness, parallelism, perpendicularity, coaxiality, concentricity, radial runout, end face runout, flatness, etc
3. Full-process automation: automatic sampling, automatic measurement, automatic data processing, and automatic report generation
4. Intelligent expansion: Capable of interfacing with robotic arms to establish an unattended measurement system
Technical Specifications:

project	parameter name	CYA
rotary worktable	Rotational accuracy	（0.025+6H/10000）μm
	rotation speed	6, 8, 10 rpm
	Effective diameter of workbench	280mm
	Maximum measured diameter	300mm
	Maximum turning diameter	450mm
	Countertop load-bearing capacity	Optional for 0-60kg
vertical axis	vertical movement	Options available: 300, 480, 600, 800, 1000mm
	mode of movement	electric
	straightness	0.3μm/100mm
horizontal arm	horizontal movement	165mm
	Protrusion	25mm
	Horizontal movement mode	electric
detector	Acquisition device	Circular grating
	Number of sampling points on the circumference	14400
	sensor type	Inductive sensor
	sensor range	±500μm
	Sensor resolution	Up to 0.001μm
	R-axis	High-precision grating sensor
	Z-axis	High-precision grating sensor
