CWFL-1000 Fiber Laser Chiller for 1000W Fiber Laser

Product ID：SYZLlshj041

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCWFL-1000

Brand NameGZTEYU

Payment TermsTT，PAYPAL，Alibaba.com Pay

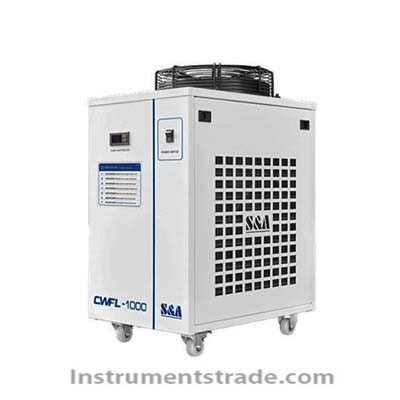

CWFL-1000 Fiber Laser Chiller for 1000W Fiber Laser
Product Overview
The CWFL-1000 Fiber Laser Chiller is specifically engineered for 1000W fiber laser systems, delivering reliable and efficient temperature control for both the laser source and the laser processing head through its advanced dual-temperature dual-control design.
Designed for continuous industrial operation, the CWFL-1000 offers excellent cooling performance, intelligent protection functions, and easy operation. It is compatible with a wide range of mainstream fiber laser brands and helps maintain stable laser output, extend equipment lifespan, and improve machining precision.
The unit features durable caster wheels for convenient mobility, removable dust filters for simplified maintenance, and optional heating and water purification systems to meet different environmental and application requirements.

Key Features
• Designed specifically for 1000W fiber laser systems
• Dual independent temperature control for laser source and laser head
• Compatible with major fiber laser brands
• High-efficiency refrigeration with stable cooling performance
• Intelligent digital temperature controller with easy operation
• Multiple safety protections including water flow, over-temperature, over-current, and compressor delay protection
• Easy-maintenance dust filter and mobile caster wheel design

Working Principle
The CWFL-1000 utilizes a closed-loop refrigeration system to continuously circulate cooled water through the fiber laser source and laser processing head.
Its dual independent cooling circuits maintain separate temperatures for the laser source and optical components, ensuring optimal thermal stability. The refrigeration compressor removes heat absorbed by the circulating water before it returns to the cooling loop.
Built-in sensors continuously monitor operating conditions. If abnormal water flow, temperature, or electrical conditions are detected, the intelligent control system immediately activates alarms and protective functions to safeguard both the chiller and the laser equipment.

Technical Specifications

Item	CWFL-1000ANS04	CWFL-1000BNS04
Voltage	AC 1P 220–240V	AC 1P 220–240V
Frequency	50Hz	60Hz
Operating Current	1.2–8.6A	1.2–7.4A
Maximum Power Consumption	1.98kW	1.95kW
Heater Power	0.8kW	0.8kW
Temperature Control Accuracy	±1°C	±1°C
Expansion Device	Capillary	Capillary
Pump Power	0.26kW	0.26kW
Tank Capacity	12L	12L
Water Inlet/Outlet	Rp1/2" + Rp1/2"	Rp1/2" + Rp1/2"
Maximum Pump Head	30m	30m
Rated Flow	1.5L/min + >10L/min	1.5L/min + >10L/min
Net Weight	39kg	38kg
Gross Weight	49kg	48kg
Machine Dimensions (L×W×H)	580 × 380 × 760 mm	580 × 380 × 760 mm
Package Dimensions (L×W×H)	660 × 480 × 920 mm	660 × 480 × 920 mm

Typical Applications
The CWFL-1000 Fiber Laser Chiller is widely used in industrial laser processing systems, including:
• Fiber laser cutting machines
• Fiber laser welding equipment
• Fiber laser marking systems
• CNC laser processing machines
• Precision metal fabrication
• Sheet metal manufacturing
• Electronic component processing
• Automotive parts manufacturing
• Aerospace component machining
• Industrial automation production lines

Why Choose the CWFL-1000 Fiber Laser Chiller?

Feature	CWFL-1000 Fiber Laser Chiller	Conventional Industrial Chiller
Laser-Specific Design	Designed for 1000W fiber lasers	General-purpose cooling
Cooling Circuits	Dual independent temperature control	Single cooling circuit
Cooling Targets	Laser source + laser head simultaneously	Single device cooling
Protection Functions	Comprehensive intelligent alarm system	Basic protection only
Compatibility	Supports multiple laser brands	Limited compatibility
Maintenance	Easy-clean dust filter and mobile design	More frequent maintenance
Optional Features	Heater and water purification available	Usually unavailable

Frequently Asked Questions (FAQ)
1. What laser power is the CWFL-1000 designed for?
The CWFL-1000 is specifically developed for 1000W fiber laser systems.
2. Why does the unit use dual temperature control?
Independent cooling circuits allow the laser source and laser head to operate at their optimal temperatures, improving stability, beam quality, and equipment longevity.
3. Which fiber laser brands are compatible?
The CWFL-1000 is compatible with many mainstream fiber laser manufacturers and can be integrated into various laser cutting, welding, and marking systems.
4. What safety features are included?
The chiller provides compressor delay protection, over-current protection, water flow alarms, high/low temperature alarms, and multiple intelligent fault monitoring functions.
5. Can optional accessories be installed?
Yes. Optional electric heating and water purification systems are available to suit different environmental conditions and water quality requirements.
6. Is the unit suitable for continuous industrial operation?
Yes. The CWFL-1000 is designed for stable 24/7 industrial cooling with reliable refrigeration performance and intelligent monitoring.

Certifications
The CWFL-1000 Fiber Laser Chiller complies with internationally recognized quality and safety standards, including:
• ISO9001 Quality Management System
• CE Certification
• RoHS Compliance
• REACH Compliance
These certifications ensure dependable performance and facilitate deployment in global industrial markets.

Conclusion
The CWFL-1000 Fiber Laser Chiller provides an efficient and dependable cooling solution for 1000W fiber laser equipment. Its dual-temperature control technology, intelligent safety protections, broad compatibility with mainstream laser brands, and optional heating and water purification modules make it an ideal choice for laser cutting, welding, marking, and other precision manufacturing applications. Combining stable refrigeration performance with easy maintenance and internationally recognized certifications, the CWFL-1000 helps maximize laser productivity while extending equipment service life.
