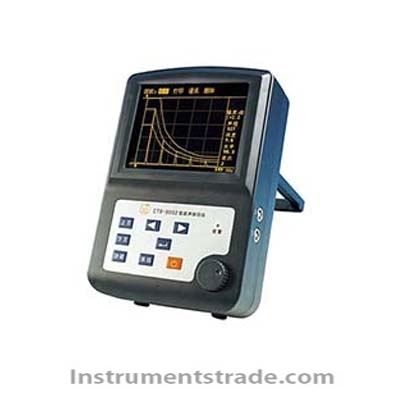

CTS-9002 Digital Ultrasonic Flaw Detector

Product ID：WWcsts030

Price: Please inquire PDF Format

Supply Ability:50 SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberCTS-9002

Brand NameSTCHAOSHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

Introduction:
CTS-9002 Ultrasonic Flaw Detector is a small and lightweight digital instrument. It is a universal flaw detector with wide application, high performance, high stability and reliability. Widely used in electric power, boiler and pressure vessels, railway, aerospace, shipbuilding and metallurgical industries.
Features:
1. Large screen, high-brightness electro-optic (EL) light-emitting display, bright and clear, can be used in low temperature conditions, low light or direct sunlight.
2. Ultra-thin and ultra-light (including battery weight 1.8Kg), suitable for use in high-altitude and mobile environments.
3. All Chinese operation prompts and menu display, easy to learn and use.
4. The original universal knob adjusts the parameters, and the keypad selects the menu, which is convenient and quick.
5. High performance and high stability, full-featured, practical, with printer port and standard RS-232 communication port.
6. D / A curve production, easy to call.
7. It can work with AC and DC power supply and is powered by environmentally friendly NiMH battery.
Technical Parameters:

Frequency Range	1 to 15 MHz; for broadband
Attenuator	Total attenuation: 100dB, 0.1dB step
Vertical linearity error	≤5%
examination range	0 to 4800mm (steel longitudinal wave)
Horizontal linearity error	≤0.5%
Detection method	Positive, negative, two-way detection
Suppression level	0 to 80%
Pulse shift	0 to 5000 mm (class longitudinal wave)
power supply	DC: 12±1.2V, about 0.6A
battery	12V/3.5Ah NiMH battery
Detecting sensitivity margin	≥46dB (using a 2.5P20 probe to find a 200mm-ф2mm flat bottom hole from the detection surface)
Remote resolution	With 2.5P20 probe long-range resolution is no more than 5mm (according to JIS Z 2352)
weight	About 1.8Kg (with battery)
Volume (length × width × height)	165mm × 85mm × 235mm
