CTS-500 ultrasonic thickness gauge

Product ID:WCHcs020

Price: Please inquire PDF Format
Supply Ability:90 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCTS-500
    Brand NameSHANTOUCHAOSHENG
    Payment TermsT/T, paypal

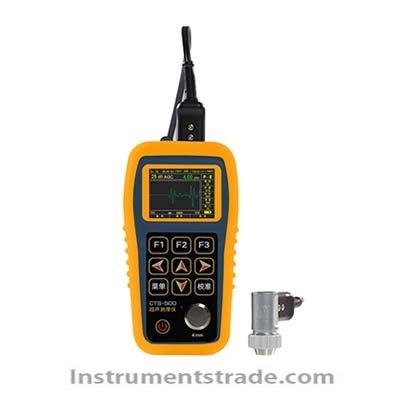

    CTS-500 ultrasonic thickness gauge
    Introduction
    CTS-500 ultrasonic thickness gauge adopts the principle of ultrasonic pulse echo, and can measure the thickness through the coating without grinding. It is used to measure the thickness of metal materials and some non-metallic materials (ceramic/glass/clinker, etc.). It is widely used in metallurgy, machinery, electric power, chemical, shipbuilding, petroleum and other industries.
     Features
    The most reliable and reliable measurement results: high-precision, anti-interference timing method to obtain pulse echo, and propagation time of secondary echo, original air calibration, three calibration modes, V-sound correction automatic correction dual-crystal probe emission chip / The sound path calculation error caused by the separation of the receiving wafers. By collecting the above calculation methods and operation modes, more reliable detection results can be obtained faster.
    Compact and lightweight: Hand-held design, small size, light weight, can be placed in a pocket or tool box, easy to carry.
    Simple operation: ten preset channels, easy to call at any time; original air calibration, greatly simplifying the use; large size true color LCD screen (320 × 240 resolution), full Chinese menu.
    A variety of functions suitable for on-site inspection: multiple working modes (common thickness measurement, minimum/maximum capture and average calculation, high and low thickness limit, difference/proportion mode, waveform mode, B-scan mode), power display, automatic shutdown The unique EE measurement method can measure the thickness through the coating without polishing, saving time and effort. The full wave function can be used for double crystal probe inspection.
    Three display modes: traditional digital display, A sweep, B sweep.
    Large data storage and data processing: powerful real-time functions for real-time recording of data and detection; 128000 dot matrix modular storage management; different color display super threshold values ​​(on a computer), 250 A sweeps or B sweeps storage. All can be uploaded to the computer for analysis through the USB interface, further modular management analysis processing, standard provides data communication processing software that can be installed on the personal computer.
     Technical parameters
    Measuring principle: dual crystal probe, pulse echo method, echo-echo method
    Pulse voltage: 150V negative pulse
    Sensitivity adjustment range: 12dB~54dB
    Sensitivity adjustment mode: AGC (automatic gain control), manual adjustment
    Waveform measurement mode: full wave, +RF, -RF
    Unit: mm, inch
    Measuring range: 0.6~500mm (0.024~19.685inches)
    Indication accuracy: mm-0.01, inch-0.001
    Material sound speed range: 500 ~ 9999m / s (built-in 7 medium material sound speed is available)
    Probe zero calibration: air zero calibration, single point calibration, two point calibration. The air calibration does not require a test block, and the probe instrument is automatically calibrated to zero; one point calibration, the sound velocity is calibrated on a test piece of known thickness; and two points are calibrated to calibrate the sound velocity and the probe zero on two test blocks of known thickness.
    V sound path correction: automatic correction
    Working mode: Normal thickness measurement, minimum/maximum capture and average calculation, high and low thickness limit, difference/proportional mode, digital mode, waveform mode, B-scan mode.
    Display: Large size true color LCD screen (320×240 resolution), 8-speed backlight adjustable
    Working language: Chinese
    Alarm function: Super standard sound, light alarm, digital display over color change prompt
    Battery working time: 14 hours for three 5th battery case
    Auto power off: The probe is not coupled within 2 minutes, the keyboard is not pressed, and the instrument is automatically turned off (the auto power off function can be turned off)
    Data storage: Powerful real-time function for real-time recording of data and inspection; 128000 dot matrix modular storage management; different color display super threshold value, 250 A sweep or B sweep storage.
    Communication interface: USB interface, can transfer the data saved on the instrument to the computer for browsing, editing, printing and other operations.
    Application Software: Communication Software
    Communication software platform: Win7, Win8
    Operating temperature: -20 ° ~ 45 °
    Volume (length × width × height): 155mm × 80mm × 35mm (without protective cover)
    Weight: 275g (with battery)
