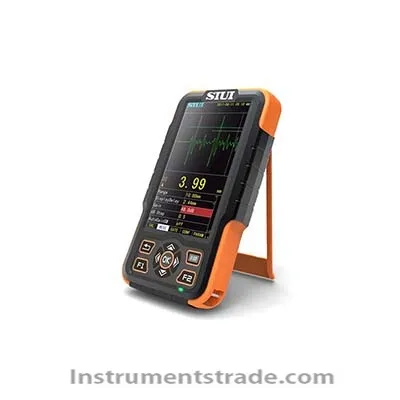

Brief introduction: CTS - 49 and CTS - 59 ultrasonic thickness gauge is developed by our company, with independent intellectual property rights of the new series of thickness gauge, a-scope, able to penetrate the coating measurement, wide measuring range, high precision, etc. Features: 1. The measuring range: 0.5 to 600 mm; 2. Small size, light weight (including battery is only 0.6 Kg); 3. 5 "800 x 480 pixels high resolution color TFT - LCD liquid crystal display, highlighting the LED backlight visual (the sun) 4. Has the automatic search function, can be adjusted according to Deborah automatic detecting range and gain; 5. Standard (R - B1, pulse to an echo) for the first time, through the coating measurement (B1, B2 or Bm - Bn); 6. You can choose A flicking and B shows; 7. Six languages optional: Chinese/English/French/German/Spanish/Portuguese; 8. To support multiple probe. Technical indicators: Measuring range: 0.5 to 600 mm (depending on the probe, the material, the temperature and the selected configuration) Resolution: value for 0.01 mm / 0.1 mm (0.001 in / 0.01 in) Sound velocity range: 400 ~ 15000 m/s Gain: 0-110 db adjustable manual/automatic search (automatic) A sweeping detection methods: bi-directional RF / / positive/negative Pulse generator: FuFang wave emission, pulse width and automatic voltage probe match Measurement times: 4/8/16/32 Pipe wall thickness measurement: with standard probe can measure the diameter of not less than 20 mm Φ, wall thickness not less than 2.0 mm steel pipe wall thickness Measurement functions: standard/minimum/maximum/mean value/difference Interface mode: standard menu interface/simple menu measurement interface Other features: sound velocity measurement, dynamic measurement value transfinite symbols/voice prompts, frozen Vertical/horizontal screen: portrait/landscape/automatic (gravity induction switch); Suitable for both operation habit Automatic shutdown: pass / 2/5 / optional 10/20/30 minutes Working temperature: - 10 ~ 45 ℃ Power supply: a. DC 12 v power adapter; B. 7.4 V rechargeable lithium battery, working hours, 6 hours or more Appearance size, quality: 105 * 180 * 42 mm, 180 g (including battery)
Brief introduction: CTS - 49 and CTS - 59 ultrasonic thickness gauge is developed by our company, with independent intellectual property rights of the new series of thickness gauge, a-scope, able to penetrate the coating measurement, wide measuring range, high precision, etc.
