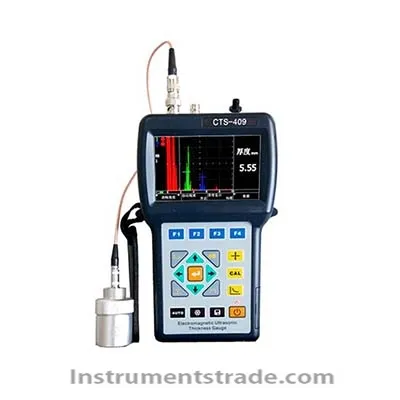

Brief introduction CTS-409 a without coupling agent, non contact measurement of the workpiece thickness of portable electromagnetic ultrasonic thickness gauge, the instrument can detect any metal or magnetic materials, and conventional ultrasound measuring thickness instrument compared, EMAT probe to detect surface insensitive to suitable for rough surface, allowing through coating (paint or rust layer) or air layer measurements, avoid removing surface oil masonry or rust. Thickness measurement result is not affected by the impact angle, measurement accuracy is high (accurate to 0.01mm), the instrument selection function can be thickness measurement data remote transmission can be realized through RS-485 bus network, GPRS wireless network and SMS short message in a variety of ways. Features The thickness measurement result is not affected by the angle, and the measurement precision is high (accurate to 0.01mm). Without coupling agent, measurement is more convenient, with the probe before wearing layer, hardness 80D+ (called). The surface oxide and paint of rough workpiece have no influence on the measuring result of the workpiece. Applicable to high temperature test thickness (detection time is less than 4 seconds can be supported to 600 degrees, to provide high temperature handle), suitable for carbon steel, copper, stainless steel and other conductive metal materials. Technical parameter Standards: in line with European standards (EN12668-1) Matching probe: EMAT-001 (can be customized) Measurement range: 2 ~ 300.0mm Workpiece temperature range: -40 to 300 ℃, point type detection can be 600 Display: industrial grade, TFT 4.3 "WVGA color LCD screen, resolution 800 x 480 Excitation intensity: 350 Vpp Sampling frequency / Number: 160MHz/10Bit Bandwidth: 300kHz-5MHz Detection mode: positive and negative detection, full detection and RF wave Range adjustment step: 1mm (shear wave) Total attenuation: 110dB, points: 0.1, 2, 6 step Lift off height: 3mm Horizontal linear error: < 0.4% Dynamic range: 30dB Methods: permanent magnet excitation Weight: < 1.0kg Power: large capacity lithium battery, no memory effect, can work continuously for 8 hours.
Brief introduction CTS-409 a without coupling agent, non contact measurement of the workpiece thickness of portable electromagnetic ultrasonic thickness gauge, the instrument can detect any metal or magnetic materials, and conventional ultrasound measuring thickness instrument compared, EMAT probe to detect surface insensitive to suitable for rough surface, allowing through coating (paint or rust layer) or air layer measurements, avoid removing surface oil masonry or rust. Thickness measurement result is not affected by the impact angle, measurement accuracy is high (accurate to 0.01mm), the instrument selection function can be thickness measurement data remote transmission can be realized through RS-485 bus network, GPRS wireless network and SMS short message in a variety of ways.
