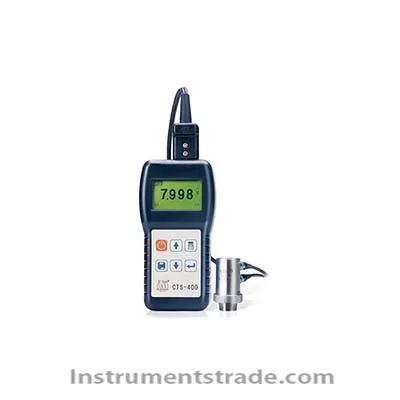

CTS-400+ Ultrasonic Thickness Gauge

Product ID:WCHcs022

Price: Please inquire PDF Format
Supply Ability:80 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCTS-400+
    Brand NameSHANTOUCHAOSHENG
    Payment TermsT/T, paypal
    CTS-400+ Ultrasonic Thickness Gauge
    Introduction
    The CTS-400+ are suitable for thickness measurements on materials such as metals and some non-metals (eg. Porcelain, glass, plastic, etc.). They are widely used in metallurgy, electric power, chemical engineering, shipbuilding, railway and petroleum industries, etc.
    Features
    Reliable wall thickness measurement.
    Handheld, small dimensions and light-weight. These gauges can be put in the pocket or kit and go where you go.
    Easy to use: Large LCD, 6 keys enable direct access to all set-up parameters.
    Multifunction to meet the needs of real application.
    Reliable data processing.
    Technical parameters
    Operating Principle Pulse echo with dual element transducers
    Units mm、inch
    Measuring Range 0.8~500.0mm(0.031~19.69 inches)
    Thickness Display Resolution mm: -0.001,0.01,0.1; inch: -0.001,0.01
    Measurement Accuracy ±|0.5%H±0.08|mm(H–Thickness of the tested material)
    Material Velocity Range 1000~9999m/s
    Measuring Range for Steel Pipes Min. ф15 diameter, 2.0mm thickness
    Probe Zero Adjustment 1 or 2 point calibration option included
    V-path Correction Automatic
    Operating Mode Normal mode, minimum capture mode, differential mode, HI / LO thickness limits
    Pulse Repetition Frequency 4Hz in normal measurement mode;16Hz in minimum capture mode
    Display Large LCD with backlit; 128×64 dot-matrix
    Dialog Languages English, Chinese
    Coupling Status Indicating Coupling status symbol indicates whether satisfactory acoustic coupling between the transducer and test piece has been achieved.
    Customizable Menu To meet the operator’s usual practice and measuring needs
    Battery Two 5# AA alkaline batteries
    Battery Life 200 hours (with backlight off)
    Low Battery Indicator Continuously indicates battery status
    Auto Shut-off After 3 minutes of non-use
    Data Logger Up to 2000 readings
    Interface USB port allows communication with PC
    Application Software Communication software
    Dimensions 138mm×70mm×34mm
    Weight 230g with battery

  • Introduction
    The CTS-400+ are suitable for thickness measurements on materials such as metals and some non-metals (eg. Porcelain, glass, plastic, etc.). They are widely used in metallurgy, electric power, chemical engineering, shipbuilding, railway and petroleum industries, etc.
