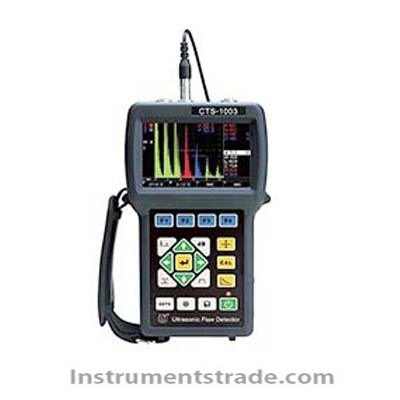

CTS-1003 Digital Ultrasonic Flaw Detector

Product ID：WWcsts029

Price: Please inquire PDF Format

Supply Ability:50 SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberCTS-1003

Brand NameSTCHAOSHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

Introduction:
Independent innovation, and constantly surpass! Our company has recently launched CTS-1003, a high-performance, ultra-light portable, waterproof and dustproof instrument that has been independently developed and has more than 50 years of experience in ultrasonic instrument manufacturing. The instrument is compatible with the European Union EN12668-1:2010 standard, adopts industrial-grade TFT display, has full WVGA resolution (800×480), and is fully qualified for working outdoors and in direct sunlight. Wave excitation technology is particularly suitable for the detection of high attenuation materials.
Weight less than 1kg, square wave excitation, full WVGA resolution (800 × 480) and dustproof and waterproof, in the domestic counterparts, nowhere, far ahead.
Features:
1. Advanced circuit design, sampling frequency up to 640MHz, full WVGA resolution (800x480) display, ensuring fast and accurate display and analysis of defective echo signals, for all kinds of weak signal changes and details Timely response, the real-time and authenticity of the echo signal is effectively guaranteed.
2. Advanced square wave excitation design, excellent penetration and signal-to-noise ratio for detecting highly attenuating materials or thick workpieces; adjustable excitation pulse width for high resolution in detecting thin workpieces and composite materials .
3. Ergonomically optimized design structure and appearance, realized with a 4.3" display, battery and charger, the instrument weight is only 0.95kg, in the domestic counterparts, the operation and carrying is very convenient.
4. Dustproof and waterproof design, fully comply with IP65 requirements, can work reliably in harsh environments such as rain, humidity and dust.
5. Compatible with EU EN12668: 2000 standard design.
6. Industrial grade, full WVGA TFT display, which enables the instrument to provide excellent display at different angles.
7. Optimized operation panel, user-friendly menu design, left and right hand operation instruments are quick and worry-free; a variety of input method input methods, Chinese and English language menu selection.
8. Auto-calibration function: including fast auto-calibration material sound velocity, probe delay, probe K value and basic performance index test of the instrument.
9. The gate area waveform amplification function makes it easy to view the waveform details; the waveform display area zoom function, plus the optimized screen aspect ratio, ensures higher echo resolution.
10. DAC curve: It is convenient to make, modify, store and call the DAC curve.
11. When the alarm is in the gate, the color of the waveform changes, and the DAC curve alarm uses different color prompt functions, which is convenient for the user to distinguish.
12. Built-in smart lithium battery charger. Battery, DC power supply automatic detection and display; charging, power supply automatic switching, battery charging temperature double protection, security is guaranteed.
13.8 hours of long battery life, long-term work "continuously."
14.USB external interface, software upgrade, data transfer and printing, and external mouse, keyboard, U disk and other peripherals.
Technical Parameters:

Pulse type	Negative square wave, the emission voltage is continuously adjustable from 25 to 250V, and the step is 25V.
Way of working	Single and double
Damping	400, 80Ω
working frequency	Broadband, narrowband, two-band, wideband: 0.5 to 20MHz, narrowband: 1.5 to 3MHz
Gain	0.0～110.0dB, step value: 0.1, 1.0, 2.0, 6.0dB; 0.1dB file provides intelligent acceleration adjustment function
Sound speed range	1000～15000m/s, continuously adjustable, built-in 30 common material sound velocity values
examination range	0.0～10000mm (steel longitudinal wave), continuously adjustable, minimum step value 0.1mm
Detection method	Forward, negative, full wave, radio frequency (RF)
Display	Industrial grade, TFT 4.3" WVGA color LCD display, resolution 800 × 480
Pulse shift	-7.5~3000μs
Probe zero value	0～999.9μs
Pulse repetition frequency	25~800Hz, automatic adjustment mode
Vertical linearity error	≤3%
Horizontal linearity error	≤0.2%
Sensitivity margin	≥60dB (200Φ2 flat bottom hole)
Resolution	≥36dB(5P14)
Dynamic Range	≥32dB
inhibition	(0~90)%, does not affect linearity and gain
Electrical noise level	<10%
interface	C9 waterproof interface USB HOST
power supply	Large capacity lithium battery, built-in charger (optional external charger available); AC: 220V
Dust/splashproof/waterproof	Meets IP65 rating
Ambient temperature	-30~50°C
Relative humidity	20% to 95% RH
weight	About 0.95kg (with battery, built-in charger)
Volume (height x width x thickness)	246mm × 166mm × 47mm
