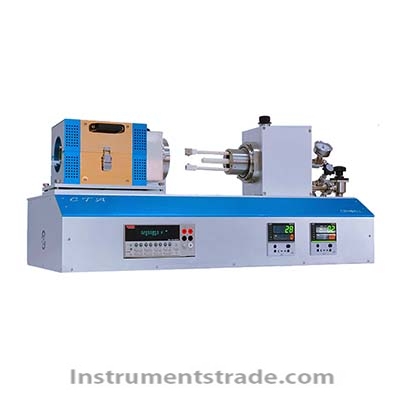

CTA-3S Thermoelectric Material Testing System

Product ID：WLqt017

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model Number CTA-3S

Brand NameBJKERUIOU

Payment TermsTT，PAYPAL，Alibaba.com Pay

CTA-3S Thermoelectric Material Testing System
Introduction:
The CTA-3S thermoelectric material testing system is an upgraded version of the CTA-3 system with more powerful hardware (data acquisition, transformer, power regulation module, temperature regulator and electromagnetic field shielding processing, temperature control method optimization, etc.), which improves the accuracy of temperature field control and the accuracy and repeatability of measurement data.
characteristic:
1. Advanced application temperature control technology, including advanced requirements such as temperature difference and measurement step
2. Free temperature rise/fall, precise temperature control program for data measurement during heating, constant temperature, and cooling processes
3. Thermocouple probes can be configured in K, S, or R types (without armor), which will not generate very large contact resistance
4. Automatic pressure safety protection design, imported US aerospace grade hardware configuration, ensuring that no explosion occurs during the testing process
5.The U-I curve is automatically scanned to calculate the appropriate current value, which can accurately measure conductivity; Will not cause errors on high resistance samples
6. Platinum large electrode design, which can fully contact the sample and obtain good conductivity testing for uneven samples
7.The spacing between thermocouples can be adjusted and fixed according to the sample size to meet different scientific research requirements
8. The temperature difference range of 0-80K can be freely set with temperature difference values and the number of temperature difference points
9. Light wave furnace heating technology, clean heating wit
hout contaminating samples and non-volatile, ensuring the safety and health of operators; Overall waterway design and gold plating treatment, no scale blockage problem, lifetime maintenance free. 10. Equipped with a vertical layout structure, upper and lower sample support clamps (sandwich), precise control of temperature difference
11. Standard imported advanced commercial current source (ADCMT), non circuit board integrated constant current source, to avoid thermal effects and inaccurate measurement caused by inaccurate output of small currents
Technical parameters:

temperature range	RT up to 800/1150°C
Temperature control rate	0.01 – 100k/min
precision	+/-0.25K
measuring method	Seebeck coefficient: direct current	Coefficient of Resistance: Four Terminal Method
measuring range	Seebeck coefficient: 0.5 μ V/K-25V/K	Electrical resistivity: 0.2 μ Ohmm-2.5 Ohmm
resolution	Seebeck coefficient: 10nV/K	Electrical resistivity: 10nOhmm
accuracy	Seebeckcoefficient: ± 7%	Electrical resistivity: ± 10%
repeatability	Electrical resistivity: ± 1%; Seebeck coefficient: ± 3%
electric current	0 to 220 mA(controllable precision ≤ 0.005mA) Constantcurrent setting resolution: 100nA Constant current stability: 0.008+20nA/day
data acquisition	100nV rms noise background The sensitivity of DC voltage is as low as 10nV, with a basic accuracy of 0.002% (90 days) 7ppm DCV repeatability, basic 1-year DCV accuracy: 0.0028% Maximum readingspeed range: 2k readings per second Temperatureresolution: 0.001 ℃; AC voltage resolution: 0.1 μ V Resistance resolution: 1 μ Ω Current resolution: 1nA
atmosphere	He、 Oxidation, reduction, vacuum
vacuum degree	10E-3mbar
Sample size	Diameter or square: 2to 4 mm; Length: 6 to 22mm
