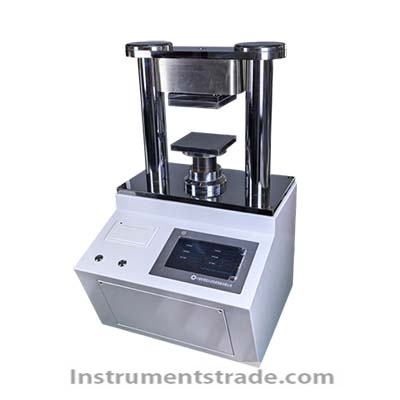

CT-500B Compressive Strength Tester Introduction: The CT-500B compression strength tester is suitable for testing the flat compression strength and deformation of various industrial paper tubes, chemical fiber paper tubes, small packaging boxes, and other types of small containers. Features: 1. Multi-functional integrated testing: The main unit, paired with customizable accessories, utilizes high-precision pressure sensors to cover tests for ring crush, edgewise crush, flat crush, peel strength, and flat crush strength of paper tubes, accommodating testing needs across various scenarios. 2. Intelligent and Efficient Operation: Microcomputer and touch screen control (supporting Chinese-English switching), automatic high-speed return of the press plate (maximum spacing 130mm), integrated data statistics and printing, enhancing operational efficiency throughout the entire process. 3. Safe, stable, and reliable: Equipped with multiple protection mechanisms such as limit, overrange, and motor stall protection, combined with a user-friendly human-machine interface, ensuring long-term stable operation and operational safety of the equipment. Technical Specifications: Measuring range: (60~5000) N Accuracy: ±1% Test speed: (12.5±2.5) mm/min (For paper tube flat pressing test, it can be set between 10 mm/min and 60 mm/min) Return speed: 60 mm/min (arbitrarily settable) Platen spacing: (1~130) mm (arbitrarily settable) Press plate size: 120mmx120mm Power supply: AC220V±10%, 50Hz Product dimensions (L×W×H): 400x400x670mm Weight: approximately 65kg Room temperature: 23±2℃ Relative humidity: 50%±10% RH
CT-500B Compressive Strength Tester Introduction: The CT-500B compression strength tester is suitable for testing the flat compression strength and deformation of various industrial paper tubes, chemical fiber paper tubes, small packaging boxes, and other types of small containers.
