CT-004 Piston Ultrasonic Flaw Detector

Product ID：WWts016

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCT-004

Brand NameSTCHAOSHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

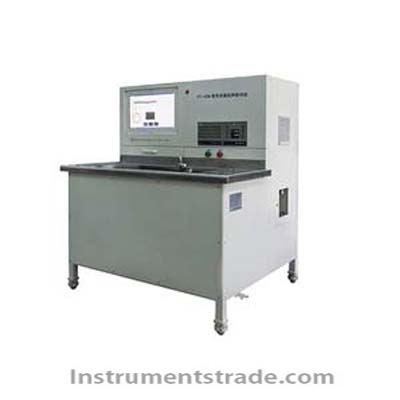

CT-004 Ultrasonic Piston Detector
Introduction
CTS-004 Ultrasonic Piston Flaw Detector is specialized for evaluation on the upper and lower sides of ringed carrier inserts as well as Al body-bonds of the piston. This equipment is fine in re-inspection and stability, with plain description of test results and of easy handling.
Ultrasonic Piston Flaw Detecting System is supported by 2 CTS-04PC Board totally 8 channels and 1 JKK-04PC IO Board. Specifications of this product complies or partly prevails over the ZBY230-84 A-scan Pulse-reflective USFD Universal Provision\ JB/T 9213-1999 A-scan Pulse-reflective USFD system Performance Testing Guideline. The specifications of this product meets the requirements and standards of all the industries like metallurgy on instruments,
Features
The equipment comprised CTS-04PC Ultrasonic Board, JKK-04PC I/O Board, industrial computer, detecting trough, probe-locating holder, Piston Turntable Bearing, and Electric control part.
Recording and flaw-judging software: the test results are given in linear graph drafted by the software specialized for the CT-004 Piston USFD, which consists of PCI IC and IPC.
Auto-judgment: input of workpiece-controlling parameters; (Name of the workpiece); distance between the oil duct end and the measured surface; common difference; smallest allowable flaws and largest flaws); Result save and alarming; File replay and print function; settings of parameters saving and recalling.
Data Processing: The detected data can be saved, and transferred to a PC via USB port for further analysis and utilization.
Technical parameter

Testing Principle	Double probe respectively transmit, receive
Unit	mm
Available Range for Piston Testing	Φ（Diameter）80mm～160mm
Distance Indication Precision	0.1mm
Working Mode	Auto-judgment and fixed-time mode
Efficiency	more than 180pcs/h
Rolling rate of the workpiece	＞10 circles/min
size of the scoop channel	650mm×460mm×380mm
Appearance Size	1450mm×1170mm×1470mm
