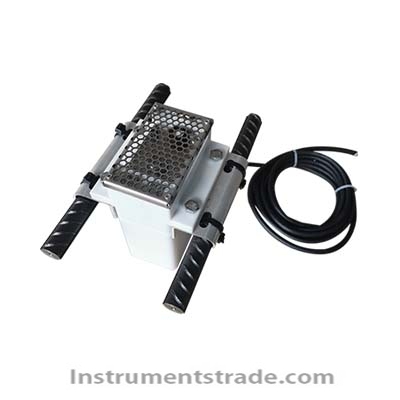

CST710 Embedded Concrete Corrosion Sensor Introduction: The CST710 embedded concrete corrosion sensor is a real-time online monitoring device for the corrosion of reinforced concrete. It adopts an integrated design, integrating the acquisition instrument and multifunctional corrosion monitoring probe into one, pre embedded in the concrete for monitoring. It can monitor parameters such as concrete resistivity, Cl - concentration, pH value, half cell potential, and steel corrosion rate in real time. Widely used for online monitoring of corrosion rate of reinforced concrete in buildings, highways, bridges, and tunnel structures. CST710 is a powerful tool for monitoring steel corrosion and concrete chemical environmental parameters in industrial sites, predicting the durability, safety, and service life of reinforced concrete structures. The CST710 embedded concrete corrosion sensor can be powered by AC through a DC12V power adapter. The measurement parameters and automatic measurement intervals of the instrument can be configured through a PC, and the measurement results are automatically saved in non-volatile memory. Users can also download measurement data to a PC through the CST620 data downloader for data analysis and plotting processing, or use the CST610 wireless data transceiver to transmit data to the cloud and display it through web access. Its integrated multifunctional reinforced concrete corrosion monitoring probe integrates pH probe, Cl - probe, and electrochemical three electrodes, with a compact structure and easy installation. It can not only monitor the pH value and Cl - concentration in concrete without damage on site, but also detect the status and corrosion rate of steel bars in concrete. It has become a powerful tool for industrial site monitoring of steel bar corrosion and concrete chemical environmental parameters, predicting the durability, safety, and service life of reinforced concrete structures. The composite probe is equipped with a long-term MnO2 reference electrode, Cl - ion selective electrode, conductivity electrode, corrosion measurement electrode, and temperature sensor, which can be embedded in concrete structures for long-term monitoring of the health status of concrete structures. Technical parameters: Product model: CST710 Number of channels: single channel Input impedance: 1 × 1011 Ω Corrosion rate range: 0~10mm/a resolving power: 1nm/a Potential measurement range: -3V~+3V Potential resolution: 0.1mV PH measurement range: 4.00～14.00 PH resolution: 0.01 Cl - Measurement range: 0~10000 mg/L resolving power: 1.0 mg/L Range of resistivity measurement: 10 Ω· cm~100k Ω· cm Calendar clock accuracy:<1 minute/month Storage: 2 Mbytes， Can store 10000 sets of data Communication method: RS485， Standard Modbus protocol Power supply mode: DC12V Size: 87*85*125mm Weight: 1Kg Working temperature: -30 ° C~60 ° C Working humidity: ≤80% Shell material: Plastic ABS
Introduction: The CST710 embedded concrete corrosion sensor is a real-time online monitoring device for the corrosion of reinforced concrete. It adopts an integrated design, integrating the acquisition instrument and multifunctional corrosion monitoring probe into one, pre embedded in the concrete for monitoring. It can monitor parameters such as concrete resistivity, Cl - concentration, pH value, half cell potential, and steel corrosion rate in real time. Widely used for online monitoring of corrosion rate of reinforced concrete in buildings, highways, bridges, and tunnel structures. CST710 is a powerful tool for monitoring steel corrosion and concrete chemical environmental parameters in industrial sites, predicting the durability, safety, and service life of reinforced concrete structures. The CST710 embedded concrete corrosion sensor can be powered by AC through a DC12V power adapter. The measurement parameters and automatic measurement intervals of the instrument can be configured through a PC, and the measurement results are automatically saved in non-volatile memory. Users can also download measurement data to a PC through the CST620 data downloader for data analysis and plotting processing, or use the CST610 wireless data transceiver to transmit data to the cloud and display it through web access. Its integrated multifunctional reinforced concrete corrosion monitoring probe integrates pH probe, Cl - probe, and electrochemical three electrodes, with a compact structure and easy installation. It can not only monitor the pH value and Cl - concentration in concrete without damage on site, but also detect the status and corrosion rate of steel bars in concrete. It has become a powerful tool for industrial site monitoring of steel bar corrosion and concrete chemical environmental parameters, predicting the durability, safety, and service life of reinforced concrete structures. The composite probe is equipped with a long-term MnO2 reference electrode, Cl - ion selective electrode, conductivity electrode, corrosion measurement electrode, and temperature sensor, which can be embedded in concrete structures for long-term monitoring of the health status of concrete structures.
