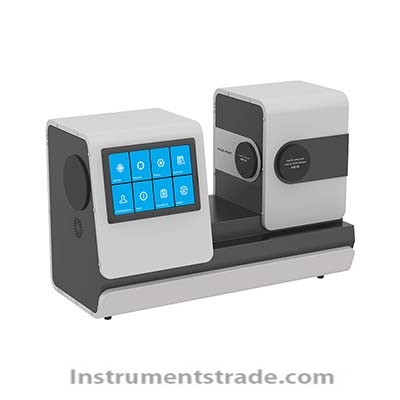

CS-730 Visible Infrared Spectral Haze Meter Introduction: The visible infrared spectral haze meter CS-730 is professionally used for haze, transmittance, spectral transmittance, clarity, and chromaticity detection in cover glass, optical films, lenses, diffusion plates, transparent packaging, and other fields. Its wavelength range is 400-1100nm, with an ultra-high resolution of 1nm, which can accurately measure spectral data. 140mm ultra wide sample pool design, convenient for placing samples of different specifications. 7-inch touch screen display, intuitive and convenient operation. Technical Specifications: Model: CS-730 Wavelength range: 400-1100nm Wavelength interval: 1nm Optical path structure: 0/d Measurement parameters: Haze (HAZE), Transmittance (T), Clarity (C), CIE Lab, LCh, CIE Luv, XYZ, Yxy, Spectral Transmittance, Hunter Lab Munsell MI, CMYK, Whiteness WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby), Huangdu YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Isochromatic Index Milm, APHA, Pt Co (Platinum Cobalt Index), Gardner (Gardner Index), Color Difference (Δ E * ab, Δ E * CH, Δ E * uv, Δ E * cmc (2:1), Δ E * cmc (1:1), Δ E * 94, Δ E * 00) Light source: haze/transmittance CIE-A, CIE-C, CIE-D65 chromaticity index: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84 Following standards: ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE ****5,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard Measurement range: 0-100% Spectral response: CIE spectral function Y Illumination and sample aperture size: 18mm/25.4mm Mist resolution: 0.01 Foggy repeatability: ≤ 0.05 Repeatability: ≤ 0.05 Interface: RS-232, USB-A, USB-B Power supply: 220V (with built-in power cord), customizable 110V Standard configuration: PC management software, clarity standard film
Introduction: The visible infrared spectral haze meter CS-730 is professionally used for haze, transmittance, spectral transmittance, clarity, and chromaticity detection in cover glass, optical films, lenses, diffusion plates, transparent packaging, and other fields. Its wavelength range is 400-1100nm, with an ultra-high resolution of 1nm, which can accurately measure spectral data. 140mm ultra wide sample pool design, convenient for placing samples of different specifications. 7-inch touch screen display, intuitive and convenient operation.
