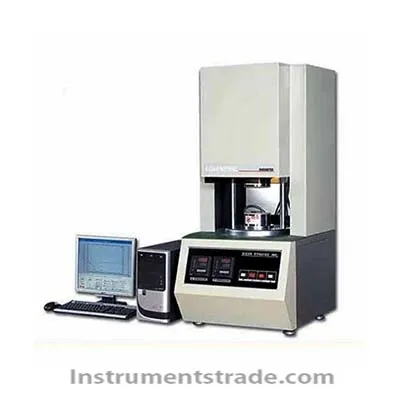

Introduction: Mooney viscometer high-precision sensors: 0 to 100 Mooney values. The Mooney accuracy is within ± 0.5 Mooney. Resolution: 1/10 Mooney Viscometer Mooney control system: the use of computer control and interface board for data collection, preservation, processing and printing test results and curve processing. Mooney viscometer rotating system: the use of gear deceleration Electronics speed motor + gear reducer + reduction gear. Rotor speed: 2 ± 0.02r / min. Technical indicators: Temperature range: room temperature +10 - -200 ℃ Temperature measurement accuracy: ≤ ± 0.3 ℃ Control accuracy: ≤ ± 0.3 ℃ Temperature resolution: 0.1 ℃ Torque range: 0-100 Mooney value Calibration accuracy: 100 ± 0.5 Mooney value Rotor speed: 2 ± 0.02 rev / min Measurement time: 0-200 resolution 1 second Ambient temperature: 0--35 ℃ Relative humidity: <80 Test pressure: 11.5KN ± 0.5KN With gas: 0.45-0.6MPA Power: AC 220V 1KVA Machine size: 660 × 570 × 1300mm (length × width × height) Machine weight: 210Kg
