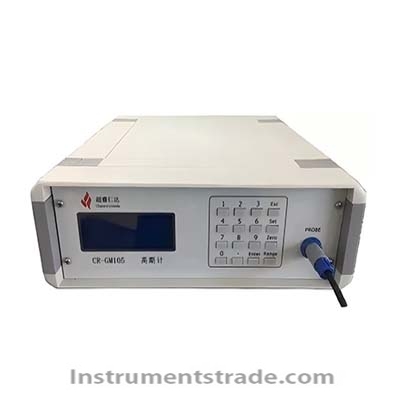

CR-GM105 Gaussian Meter

Product ID：CLQTdcxjly028

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCR-GM105

Brand NameBJCHAORUIRENDA

Payment TermsTT，PAYPAL，Alibaba.com Pay

CR-GM105 Gaussian Meter
Introduction:
Gauss meter (also known as Tesla meter) is an instrument made based on the Hall effect to measure the magnetic induction intensity, used to measure the static or dynamic (AC) magnetic induction intensity of an object at a point in space. The Gaussian meter consists of a Hall probe and a measuring instrument. The Hall probe generates a Hall voltage in a magnetic field due to the Hall effect. After measuring the Hall voltage, the magnitude of the magnetic induction intensity can be determined based on the Hall voltage formula and known Hall coefficient. The reading is in Gauss or kiloGauss units.
In experiments using magnetic field generating devices such as electromagnets, electromagnetic coils, and solenoids, a Gaussian meter is generally used to monitor and control the magnetic field strength. The CR-GM105 desktop Gaussian meter produced by Super Rui Renda can fully meet the above usage requirements.
Technical parameters:

Applicable objects	Electromagnetic field generating equipment such as electromagnets, electromagnetic coils, and solenoids
INPUT VOLTAGE	220V 50Hz
Range of measurement	300Gs/3000Gs/30000GS
accuracy	0.5Gs
resolution	0.05Gs
Tested magnetic field	DC magnetic field (static magnetic field)/AC magnetic field (optional)
PRODUCT FUNCTION	Zero adjustment method: One click automatic zero adjustment; Display interface: 3.5-inch LCD screen; Output port: RS232 serial port; Other functions: prompts for exceeding the upper and lower limits;
External dimensions	285mm（L）×300mm（W）×100mm（H）
Instrument weight	3kg
Display mode	3.5-inch LCD display screen
Display units	Gs/KGs
Probe selection	Horizontal probe/Vertical probe
Probe indicators	Horizontal probe parameters: length * width * thickness: 60mm * 4.0mm * 1.0mm, sensitive area 0.5mm * 0.5mm Longitudinal probe parameters: length * diameter: 60mm * 5.0mm, sensitive area 0.5mm * 0.5mm

Introduction:
Gauss meter (also known as Tesla meter) is an instrument made based on the Hall effect to measure the magnetic induction intensity, used to measure the static or dynamic (AC) magnetic induction intensity of an object at a point in space. The Gaussian meter consists of a Hall probe and a measuring instrument. The Hall probe generates a Hall voltage in a magnetic field due to the Hall effect. After measuring the Hall voltage, the magnitude of the magnetic induction intensity can be determined based on the Hall voltage formula and known Hall coefficient. The reading is in Gauss or kiloGauss units.
In experiments using magnetic field generating devices such as electromagnets, electromagnetic coils, and solenoids, a Gaussian meter is generally used to monitor and control the magnetic field strength. The CR-GM105 desktop Gaussian meter produced by Super Rui Renda can fully meet the above usage requirements.
