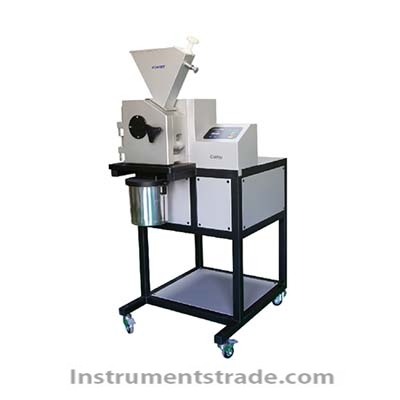

CM200 cutting pulverizer

Product ID：SYFSfs038

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCM200

Brand NameGERUIDEMAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

CM200 cutting pulverizer
Introduction:
The cutting pulverizer is achieved through strong cutting and shearing action. The sample enters the grinding chamber through the injection funnel, and is initially crushed under multiple cutting actions between the rotating blade and the cutting edge. After secondary crushing by the rotating blade and the sieve ring, sample particles smaller than the selected bottom sieve aperture will enter the collector through the airflow from the grinding chamber. Application areas: electronics, environment/solid waste, construction/cement, agriculture, etc. Typical samples: rubber, plastic, garbage, circuit boards, traditional Chinese medicine, wood, cardboard, paper, seasonings, straw, straw, equipment raw materials, bones, feed, cables, plastics, grains, lignite and peat, etc
characteristic:

The operation is simple and safe,
and the electronic safety diagnostic system can prevent the instrument from being started when the machine dooris open.
The rotating knife, screen ring, and funnel can be easily removed and installed, and the round hole and square hole screens can be used in both directions to enhance their service life;
The equipment has a ventilation system to improve the internal air circulation efficiency and sample collection speed, and the motor has overload protection function;
The crushing chamber and hopper are made of materials that are easy to clean and in contact with the sample;

5. The sealed grinding chamber can be opened more than 180 degrees, and no tools are needed to remove the blade and screen for cleaning;
Technical parameters:

Injection size	70 * 90 millimeters
Sample size	100~250 microns
rotational speed	100-3000 revolutions per minute
Sample processing capacity	5 liters to 80 liters per hour
Available aperture for screening	0.10/0.20/0.5/1.00/2.00/4.00/6.00/8.00/10.00/20.0/25mm, etc
Optional rotating knife	24 tooth rotary cutter, standard 3-speed parallel rotary cutter, V-shaped rotary cutter
Receiving tank capacity	5 liters or 0.5 liters, 1 liter, 2 liters, 10 liters, and a maximum of 80 liters are available for selection
rated power	3.0 kW

Introduction:
The cutting pulverizer is achieved through strong cutting and shearing action. The sample enters the grinding chamber through the injection funnel, and is initially crushed under multiple cutting actions between the rotating blade and the cutting edge. After secondary crushing by the rotating blade and the sieve ring, sample particles smaller than the selected bottom sieve aperture will enter the collector through the airflow from the grinding chamber. Application areas: electronics, environment/solid waste, construction/cement, agriculture, etc. Typical samples: rubber, plastic, garbage, circuit boards, traditional Chinese medicine, wood, cardboard, paper, seasonings, straw, straw, equipment raw materials, bones, feed, cables, plastics, grains, lignite and peat, etc
