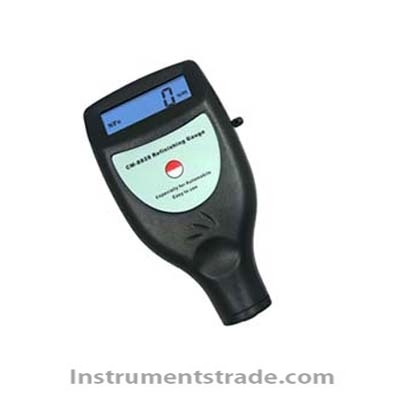

CM-8828 automobile coating thickness gauge

Product ID:WCHdc033

Price: Please inquire PDF Format
Supply Ability:1500 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCM-8828
    Brand NameGUANGZHOULANTAI
    Payment TermsTT,PAYPAL
    CM-8828 automobile coating thickness gauge
    Introduction:
    The coating thickness gauge is a portable thickness gauge, which can measure the thickness of coating and plating layer quickly, without damage and accurately; It can be used on the project site or in the laboratory. Through the use of different probes, it can meet a variety of measurement needs; It is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection fields; It is a necessary instrument for material protection.
    characteristic:
    1. Iron based and non-ferrous coating thickness gauge.
    2. Single and continuous measurement modes are available.
    3. Metric/English unit conversion.
    4. It has the functions of manual shutdown, automatic shutdown, undervoltage prompt, etc.
    5. Automatically memorize the calibration value and automatically identify the material of the measured substrate.
    6. There is a buzzer prompt sound during the operation, and the buzzer does not sound during continuous measurement.
    7. RS-232 data line is used for output and connection with PC.
    8. Provide Bluetooth data output options.
    9. Automobile coating thickness gauge, one key operation, fast and convenient.
    Technical parameters:
    Measuring range: 0 µ m~1250 µ m/0mil~50mil (standard range)
    Resolution: 0.1 µ m/1 µ m
    Accuracy: ± (1 μ m+3%H)
    Minimum surface: F: convex 1.5mm/concave 25mm N: convex 3mm/concave 50mm
    Minimum measuring area: 6mm
    The thinnest substrate is 0.3mm
    Metric/imperial conversion: √
    Low voltage prompt: √
    Automatic shutdown function: √
    Working environment: temperature: 0 º C~40 º C humidity: 10% RH~90% RH
    Power supply: 4 No. 7 batteries
    Size: 126mmx65mmx27mm
    Weight: 81g (without battery)
  • Introduction:
    The coating thickness gauge is a portable thickness gauge, which can measure the thickness of coating and plating layer quickly, without damage and accurately; It can be used on the project site or in the laboratory. Through the use of different probes, it can meet a variety of measurement needs; It is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection fields; It is a necessary instrument for material protection.
