CH1006 digital display low-temperature thermostatic bath

Product ID：SYJRGZshyyy063

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCH1006

Brand NameSHHENGPING

Payment TermsTT，PAYPAL，Alibaba.com Pay

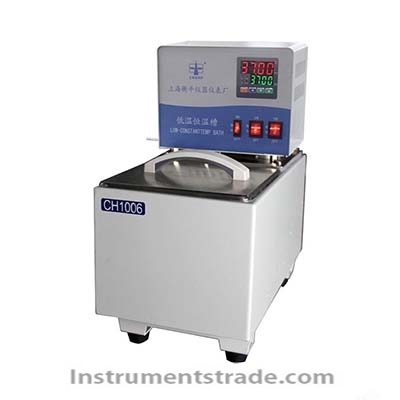

CH1006 digital display low-temperature thermostatic bath
Introduction:
The CH1006 series super constant temperature bath adopts a microcomputer intelligent control system and a PT100 temperature sensor, featuring broken thermocouple protection and overtemperature alarm functions. It boasts a temperature fluctuation of ±0.02℃, a display resolution of 0.01℃, a pump flow rate of 8L/min, and stainless steel inner bath and cabinet. Equipped with a circulating pump, it can direct the thermostatic liquid in the bath outwards to establish a secondary constant temperature field.
In this series of ultra-low temperature thermostatic baths, the CH1006 is specifically designed for the low temperature thermostatic bath of a rotational viscometer. The Φ70 opening can accommodate a 200ml beaker, which is secured by a fixed frame. The temperature of the liquid in the bath is directly transferred to the tested sample, and the rotor of the rotational viscometer can be easily placed into the beaker for testing.
This series offers a variety of specifications, allowing customers to choose based on temperature ranges (100, 150, 200, 300℃) and inner liner capacities (6, 15 liters). Whether you require internal or external circulation, you can select from a wide range of high and low temperature thermostatic baths. This series is wear-resistant and corrosion-resistant, with application temperatures reaching up to 300℃.
Product Usage
The CH1006 series super constant temperature bath is widely applicable in fields such as bioengineering, medicine, food, chemical industry, metallurgy, chemical analysis, and petroleum. It provides users with a controlled and uniformly temperature-maintained constant field source. It is ideal for research institutes, universities, factory laboratories, and quality inspection departments, offering a liquid environment with controlled heat and cold, as well as uniform and constant temperature during work.
Technical parameters:

Type/Model	CH1006	CH1506	CH2006	CH3006
Temperature range (℃)	Room temperature +15 to 100	Room temperature +15 to 150	Room temperature +15 to 200	Room temperature +30 to 300
Temperature fluctuation (℃)	Room temperature +20 to ±0.02			Room temperature: 25 ± 0.5
Temperature control method	Microcomputer temperature control, PID regulation
Display resolution (℃)	0.01			1
Inner tank capacity (L)	6
Opening size (length × width × depth (mm))	150× 150 × 150
Pump circulation mode	Inner/outer loop	Inner loop
Pump flow rate (L/min)	8
Power (KW)	0.7		1.8
Outline dimensions (mm)	190 × 334 × 345
