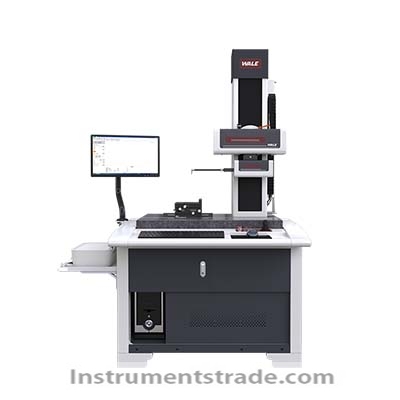

CE series standard profile measuring instrument

Product ID：CLBMccd039

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCE

Brand NameSXWEIER

Payment TermsTT，PAYPAL，Alibaba.com Pay

CE series standard profile measuring instrument
Introduction:
The CE series standard profile measuring instrument lever ratio maximizes the original accuracy of the sensor. It adopts the latest PEEK modified composite material as the friction material for the measuring reference guide rail, which has excellent comprehensive performance and requires no maintenance for long-term use. The simple software architecture completely separates measurement, analysis, and reporting, making the operation purpose clearer and achieving complex functions while maintaining excellent operability.
Technical Specifications:

model		CE
measurement range	X-axis	0-300mm
	X-axis resolution	0.1μm
	Z-axis	Available in 420mm and 620mm options
Contour sensor	Z1 axis range	30-60mm
Contour sensor	Z1 resolution	0.02μm
Contour accuracy	Z1 linear accuracy	≤±(0.8+\|0.05H\|)μm
	circular arc	Shi (2+R/8) μ m
	angle	±2′
	straightness	0.5um/100mm (cutoff wavelength 2.5)
Drive speed	X-axis drive method	electric
Drive speed	Y-axis drive method	electric
Fastest measurement speed		0.5mm/s
Marble size		500mm×800mm
Countertop material		Natural marble
