CDX-II portablemulti-purpose magnetic particle flaw detector

Product ID：WWts035

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

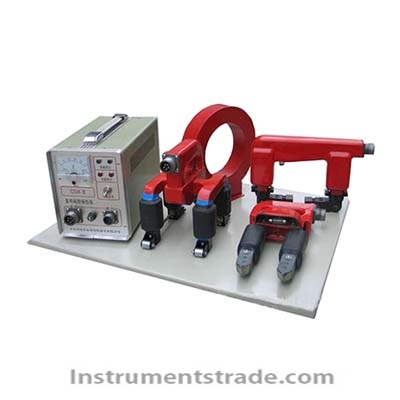

CDX-II portablemulti-purpose magnetic particle flaw detector
Introduction:
TheCDX-II portable multi-purpose magnetic particle flaw detector is suitable for industries such as aerospace, aviation, railways, automobiles, ships, pressure vessels, and machinery.
Type A probe: horseshoe magnetic yoke angle weld probe, movable joint inclined magnetic head, equipped with work light; It is particularly suitable for detecting irregular surfaces and complex shaped workpieces. Polar distance: 20-160; Boosting power: AC ≥ 5, DC ≥ 18. Equipped with an electromagnetic yoke angle weld flaw detector, the probe adopts a movable joint that can be freely adjusted and has a wide range of applications.
E-type probe: Cross magnetic yoke probe or rotating magnetic field probe, can perform comprehensive composite magnetization inspection in one go, and the walking roller and work light can improve the inspection speed. Pole distance: 110, lifting force: AC ≥ 8. Equipped with a rotating magnetic field flaw detector, two crossed magnetic yokes use AC phase-shifting technology to generate a composite rotating magnetic field that varies over time, and magnetize the workpiece in all directions in one go. The probe has fast speed and high detection quality.
D-type probe: electromagnetic yoke probe, multiple movable joints, high magnetization intensity. Pole distance: 60-220, lifting force: AC ≥ 6, DC ≥ 20. Equipped with an electromagnetic yoke angle weld flaw detector, the probe has the characteristics of high magnetic conductivity and high magnetization strength.
O-type probe: also known as ring probe, inner diameter: 150, center magnetic field ≥ 180Oe. Equipped with a ring flaw detector, it is designed based on the principle of generating a strong magnetic field when the coil is energized, and is suitable for segmented flaw detection or demagnetization of complex workpieces such as shafts, pipes, bolts, etc.
Technical parameters:

Model number	CDX-I	CDX-II	CXX-E	CJE-A	CJE-D
Power supply	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ
Magnetization method	AC/DC	exchange	exchange	exchange	AC/DC
Probe selection	A、D	A、D、E、O	E	A	D
Total weight	15kg	20kg	10kg	8kg	8kg
Boosting power	A. D-type ≥ 4.5kg; E-type ≥ 12kg
Polar distance	Type A: 10-180mm; Type D: 10-210mm; Type E: 10-100mm; Type O: Inner 120mm
