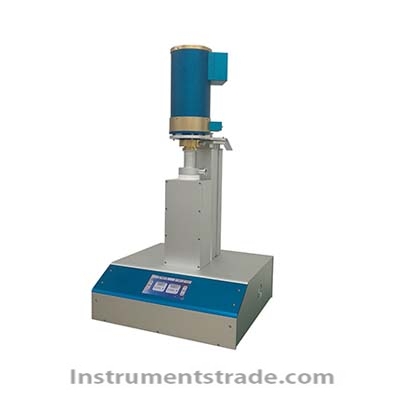

C15V thermal expansion meter

Product ID：WLrpz030

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberC15V

Brand NameBJKERUIOU

Payment TermsTT，PAYPAL，Alibaba.com Pay

C15V thermal expansion meter
Introduction:
The V series products adopt unique measurement technology and design, which can meet the requirements of ultra-low temperature and high temperature testing and analysis. The vertical measurement system and upper or lower vertical furnace body can truly accurately measure the thermal expansion parameters of samples under precise temperature control conditions; Vertical design saves 2/3 of laboratory space.
characteristic:
1.Vertical measurement technology, top mounted LVDT design, can truly accurately measure powder samples and paste samples
2.LVDT、The top rod, force application system, and sample are at 180 degrees, with zero torque; Zero friction between sample and bracket for more accurate measurement
3.Copper slider design is used between the LVDT system and the fixed bracket to reduce measurement system friction and magnetic field free technology
4.Reverse automatic balancing technology eliminates the influence of gravity
5.Unique high-quality dual displacement sensor (LVDT), dual motor automatic control technology, sample can be of any length, and load capacity can be truly constant
6.Automatic drive sample and digital zero adjustment technology to eliminate the sharp errors caused by the vacuum and sealing of the measuring head of the spiral micrometer
7.Automatic control of sample loading technology, which can adjust the applied force (mN) of the sample and maintain a constant force during the shrinkage or expansion process of the sample
8.Electronic automatic constant temperature measurement system ensures that the measuring head minimizes temperature drift and can meet harsh environmental temperatures, making measurements more accurate
9.Expand the configuration of multiple furnace bodies, allowing users to switch between furnace bodies and power sources within 3 seconds without the need to plug or unplug various data cables
10.Advanced software, configured with DTA function, softening point protection, volume and density calculation, sintering rate control RCS, and remote control software, etc
11.Optional advanced ultra-low temperature system, no liquid helium refrigeration temperature control (-263 ℃)
12.Optional rapid heating system (infrared reflection coke oven, 300k/min or faster)
13.Optional superconducting magnetic field system
Technical parameters:

Measurement mode	Vertical (vertical - upper or lower furnace body): Zero torque,zero friction, 180 ° linear measurement Automatic opening and closing of furnace body (equipped with high-end low-noise lifting system) More suitable for testing powder and paste samples (lower furnace design) Optional2-furnace system with free switching, expanding temperature range or improving efficiency
temperature range	-180-500℃ RT-1000/1400/1600/1650/1750℃ ≥ 2000 ℃ (specially customized)
Temperature control rate	0-50/100 K/min(depending on the alloy SIC、 Precious metals, silicon molybdenum rods, graphite, etc 0-300K/min (light wave furnace)
refrigeration system	According to different furnace bodies, air cooling, water cooling, liquid nitrogen, etc
Temperature accuracy	1K
Temperature Accuracy	0.1K
Constant temperature technology for measurement systems	standard configuration
Sample holder	Quartz (customized by Heraeus) Aluminum oxide (customized by Morgan) Graphite (according to user requirements)
Number of samples	Single pole, double pole
sample length	0＜L≤50 mm
Sample diameter	7 mm/12mm/14mm/20mm/Customized
measuring range	0-5000 μm （±2500μm）
resolution	0.03 nm/digit
Δ L/L0 repeatability	0.001% absolute value
Accuracy of Δ L/L0	0.002% absolute value
measurement error	± 1% (relative value)
Contact force	0.01 N to2.5 N(auto loading)
vacuum degree	10E-5 mbar
atmosphere	Oxidation, reduction, inert atmosphere, etc
gas control	Standard configuration: Manual gas box (2 channels) Optionalconfiguration: MFC (Bronkhorst)
water-cooling system	Standard configuration cooling function
vacuum system	Standard mechanical pump and accessories Optional: (According to user requirements)
Safety function	Softening point testing and protection Water flow switch technology Thermocouple damage protection technology
software	Includesworkstation and operationanalysis software; Sintering rate function RCS; Density calculation function; C-DTA calculation, etc; Compatible with Windows version.

Introduction:
The V series products adopt unique measurement technology and design, which can meet the requirements of ultra-low temperature and high temperature testing and analysis. The vertical measurement system and upper or lower vertical furnace body can truly accurately measure the thermal expansion parameters of samples under precise temperature control conditions; Vertical design saves 2/3 of laboratory space.
