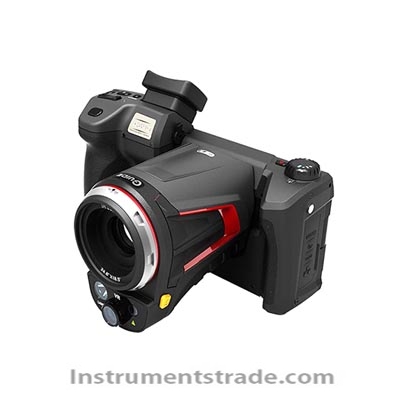

C series high-performance infrared thermal imager

Product ID：CLWDhwrx016

Price: Please inquire PDF Format
Supply Ability:100SETS/MON
Port:SHENZHEN
Request QuoteAdd To Cart
share:
  • Product Introduction
  • Other information
  • Model NumberC series
    Brand NameWHGAODE
    Payment TermsTT，PAYPAL，Alibaba.com Pay
    Brief introduction:
    The C series product is specially designed for professional users in the infrared temperature measurement industry. The infrared detector with high sensitivity and higher resolution can provide clearer infrared images and higher temperature measurement accuracy. Supported by the android operating system, large screen display and rotatable lens structure, easy to use and powerful. It can also synchronously collect visible and infrared images, and display the key observation positions by painting in pictures or MIF.
    At the same time, through the open android application platform, it can be extended into a multi-purpose mobile infrared thermal imaging application platform.
    Product features:
    1. High-resolution imaging and accurate temperature measurement.
    • maximum 640 x 480 pixel infrared focal plane array detector, high sensitivity, automatic focusing, fast acquisition of high-definition infrared images;
    • 1280 x 960 LCOS high-definition eyepiece, fast and stable shooting, and more power saving;
    • the 5-inch 720P touch screen provides more intuitive and perfect viewing images, making operating experience more comfortable;
    • 5-megapixel visible light lens and LED auxiliary light can achieve better shooting effect when the light is insufficient.
    2. No dead Angle observation, more comfortable operation.
    Using rotatable design, display rotate 270 °, camera rotate 70 ° upward;
    • the process perfectly solves the durability and reliability of the rotating shaft, which can be stopped at any Angle during rotation;
    • make it easy for the user to quickly find the ideal operation Angle, making it easy for you to cope with the complex environment;
    • excellent ergonomic design can greatly alleviate the sense of fatigue caused by prolonged holding.
    3. Convenient wi-fi mobile Internet function.
    • the wi-fi module is standard in the whole series of products, which can be connected with mobile devices to realize data transmission, parameter setting and wi-fi printing;
    • wireless connection between mobile terminals and products via wi-fi, multi-screen control, real-time sharing of captured infrared images, real-time analysis, export and printing of infrared reports;
    4. Intelligent operating system has rich built-in and extended functions.
    • adopt android operating system, built-in multiple utility functions, with powerful analysis and reporting capabilities;
    • based on the open android platform, with the use of mobile terminal APP and IR Analyser dedicated analysis software, more extensive application extension functions can be provided.
    5. Multiple image modes, dual recording.
    • full infrared, full visible light, in-painting and MIF image display modes to fully meet your observation needs;
    • first adopted MIF image patent technology to make important details such as Numbers, words, labels or tiny temperature differences clearly visible;
    • it can record infrared image and visible image synchronously, and the machine SD card can easily store thousands of images and support revisit analysis at any time.
    6. Various focal length lenses are available.
    • equipped with a high-precision 25mm germanium lens, plus long and wide Angle lenses available;
    • automatic and electric focusing gives full play to the advantages of the high-resolution FPA detector.
    7. Bid/select accessories.
    • standard accessories: thermal imager/lithium battery/power adapter/adapter plug (5)/SD card (16G)/ shoulder strap /USB cable /HDMI cable/network cable/quick operating guide/instruction manual/CD/accessories list card;
    • options: lithium battery/carrier bag/bluetooth headset/seat charger/telephoto lens/wide-angle lens/high temperature lens.
    Technical parameters:
    C series C400 C640 C640Pro
    Detector resolution 384×288 640×480
    Wavelength range 8~14um
    NETD 45mk 40mk 30mk
    Frame frequency 25Hz/9Hz
    Focusing way Electric/automatic
    Standard lens (field Angle /F number) 21.7°×16.4°/25mm/F1.0 24.6°×18.5°/25mm/F1.0
    Extended lens (field Angle /F number) 40.5°×31°/13mm/F1.1/0.15m 45.4°×34.9°/13mm/F1.1/0.1m
    10.0°×7.5°/55mm/F1.1/2m 11.3°×8.5°/55mm/F1.1/1.5m
    6.7°×5.1°/85mm/F1.2/5m 7.3°×5.5°/85mm/F1.2/5m
    High temperature lens
    Minimum focus distance 25mm/0.4m   13mm/0.15m    55mm/2m 25mm/0.3m   13mm/0.1m    55mm/1.5m
    Spatial resolution mrad 25mm/0.99    13mm/1.84    55mm/0.45 25mm/0.67    13mm/1.24    55mm/0.31
    LCD display 5",1280 × 720 high brightness touch screen
    The viewfinder 1280×960  LCOS screen
    Brightness contrast Automatic/manual/lock
    Image schema Infrared/visible light/paint in pictures /MIF
    Digital variable times 1. 1 × 4 × infinitesimal variable 1.1 10 × infinitesimal variable
    The palette 8 10
    Temperature measurement range Gear: 1-20 ℃ ~ 150 ℃;
    Gear 2:15 0 ℃ ~ 800 ℃, optional 2000 ℃
    Temperature measurement accuracy ±2 ℃ or ±2% (maximum) ±1 ℃ or ±1: take a large value (limiting temperature) ±2 ℃ or ±2% (take a large value)
    Point temperature measurement 5 points 8 points 10 points
    Analysis object storage no    Analysis object can be saved with image (point, line area)
    Automatic tracking Maximum or minimum temperature Maximum or minimum temperature
    isotherm Up and down Up, down and interval
    Temperature alarm Images and sounds
    Image format JPG or with raw data
    Image storage 16G internal, 16G external SD card (maximum support is 32G)
    Voice comments 60 seconds
    Text annotations Soft keyboard input
    Save the image parameters yes
    Analysis report PDF format
    Report to print Wi-fi to print
    Video format H.264 (with temperature information)
    Photo storage Manual storage
    Hardware module Visible light, 5 million, lighting, laser, WIFI, microphone (tunable), horn (tunable), electronic compass, GPS, light sensor, bluetooth (C640Pro only)
    External interface Micro USB2.0, SD card, gigabit Ethernet, tripod, Mini HDMI
    Battery Rechargeable lithium battery (UN38.3 certified);
    Sleep mode Available for 4 hours (integrated working hours)
    Working temperature -10℃~50℃ （eyepiece -10℃~40℃ ）
    Storage temperature -40℃~70℃
    vibration 2g，IEC 60068-2-6
    Protection grade IP54
    The weight of the 1350g
    Size 206mm×145mm×135mm


  • Brief introduction:
    The C series product is specially designed for professional users in the infrared temperature measurement industry. The infrared detector with high sensitivity and higher resolution can provide clearer infrared images and higher temperature measurement accuracy. Supported by the android operating system, large screen display and rotatable lens structure, easy to use and powerful. It can also synchronously collect visible and infrared images, and display the key observation positions by painting in pictures or MIF.
    At the same time, through the open android application platform, it can be extended into a multi-purpose mobile infrared thermal imaging application platform.
