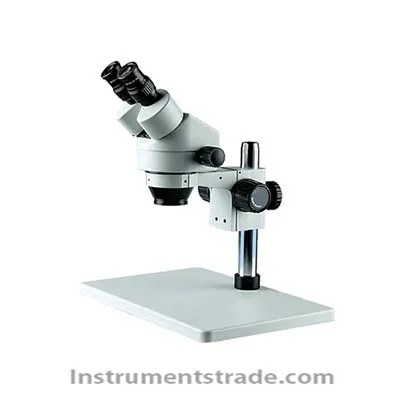

BT-SZM45-T3 Large Base Microscope

Product ID：GGXgj016

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBT-SZM45-T3

Brand NameSZBAITEWEI

Payment TermsTT，PAYPAL，Alibaba.com Pay

BT-SZM45-T3 Large Base Microscope
Introduction:
Provide high-definition optical systems and durable and reliable operating mechanisms.
Complete accessories and diverse combination configurations.
Meet the high-precision requirements of modern biology, medicine, scientific research, modern electronic industry online detection, and other technological industries.
Technical parameters:

magnification	Standard configuration: 7X-45X, optional eyepiece and auxiliary objective can be expanded to 3.5X-270X, continuous zoom
Eyepiece	Standard configuration: 10X/20mm, large field of view, wide angle, high eye point, providing convenience for observers wearing glasses
Optional eyepiece	10X/20mm，15X/15mm，20X/10mm，25X/9mm，30X/8mm
viewing head	45 ° tilt, 360 ° rotation, pupil distance 54-76mm; Bilateral visual acuity adjustment (± 5)
	Hinged binocular
objective	0.7X-4.5X continuous zoom, objective zoom ratio 6.4:1 ensures image plane homogeneity
Auxiliary objective	Optional 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Focusing bracket	A1 focusing bracket handwheel with adjustable elasticity and lifting range of 50mm
base	3 column type flat base, optional with other bases, see the base component diagram for details
lighting	Various fluorescent and LED ring lights can be optionally selected, please refer to the external light source component diagram for details
